Estes A8-5 Model Rocket Engines
A8 Model Rocket Engine Thrust Curve Chart

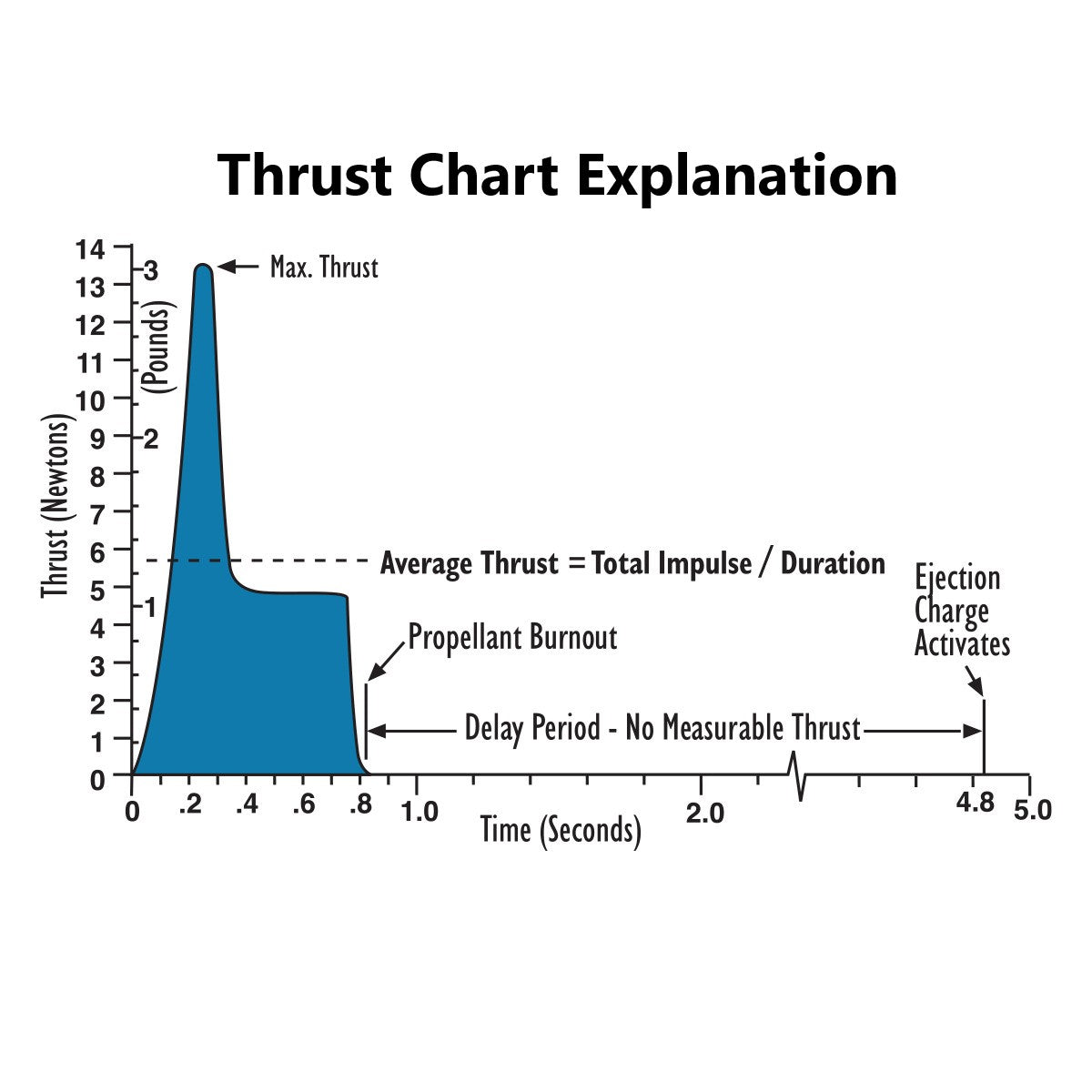

Model Rocket Thrust Curve Chart Explanation
Estes A8-5 Model Rocket Engines
A8 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Chart Explanation
Estes Rockets

A8-5 Engines

SKU: 001599
UPC: 047776015999
MSRP/MAP: $11.29
$11.29
Sale

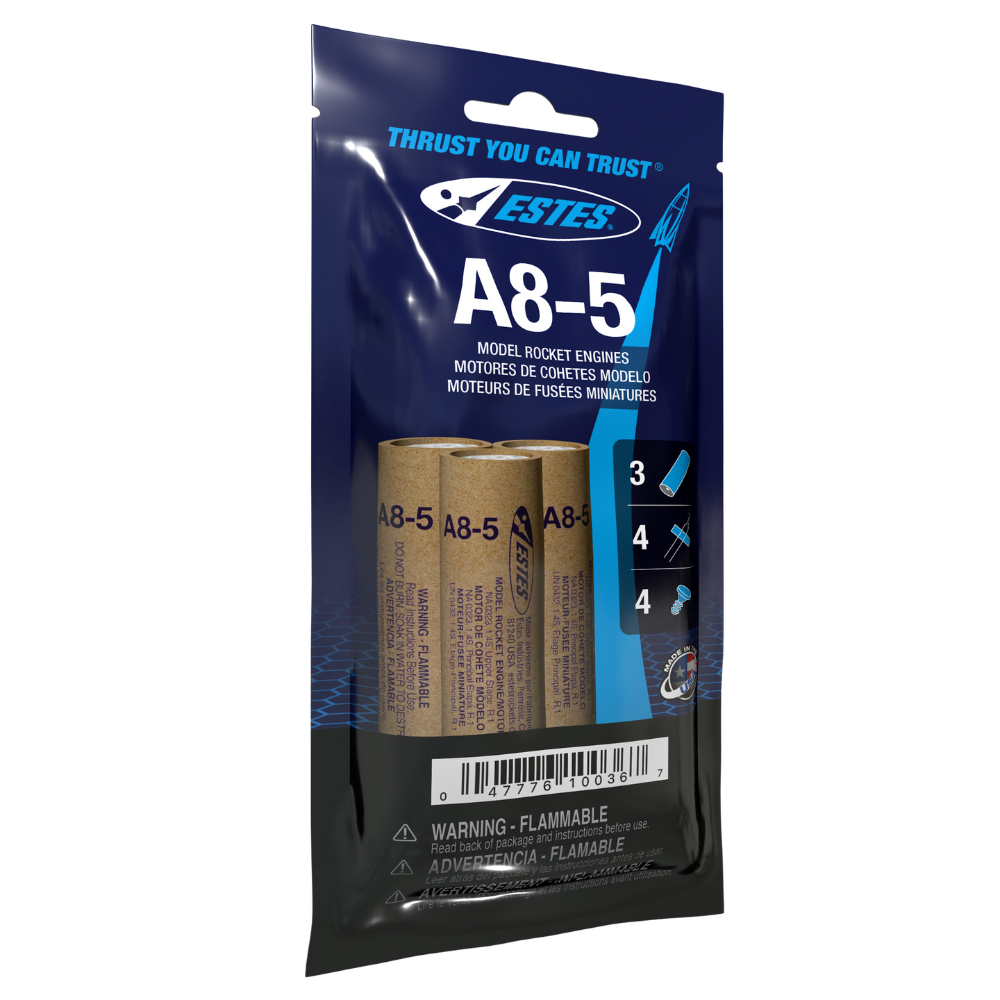

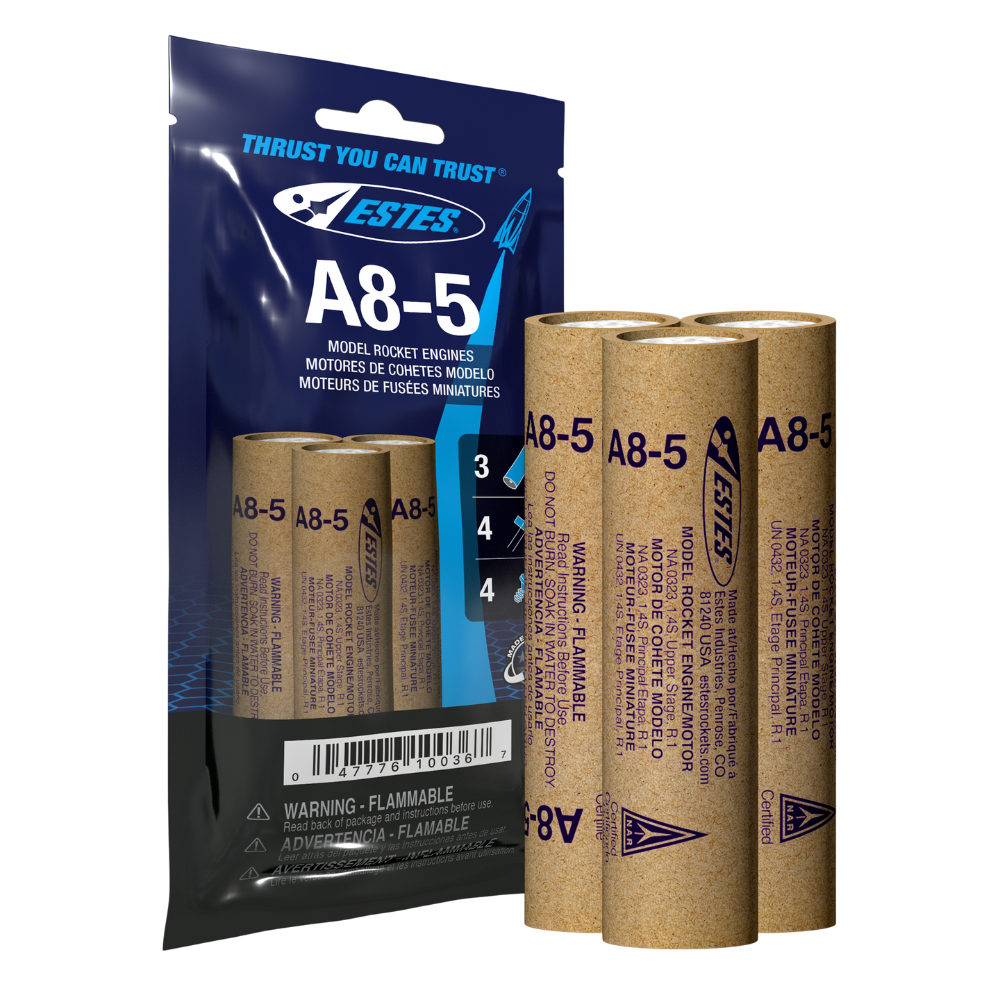

ENGINES FOR MODEL ROCKETS

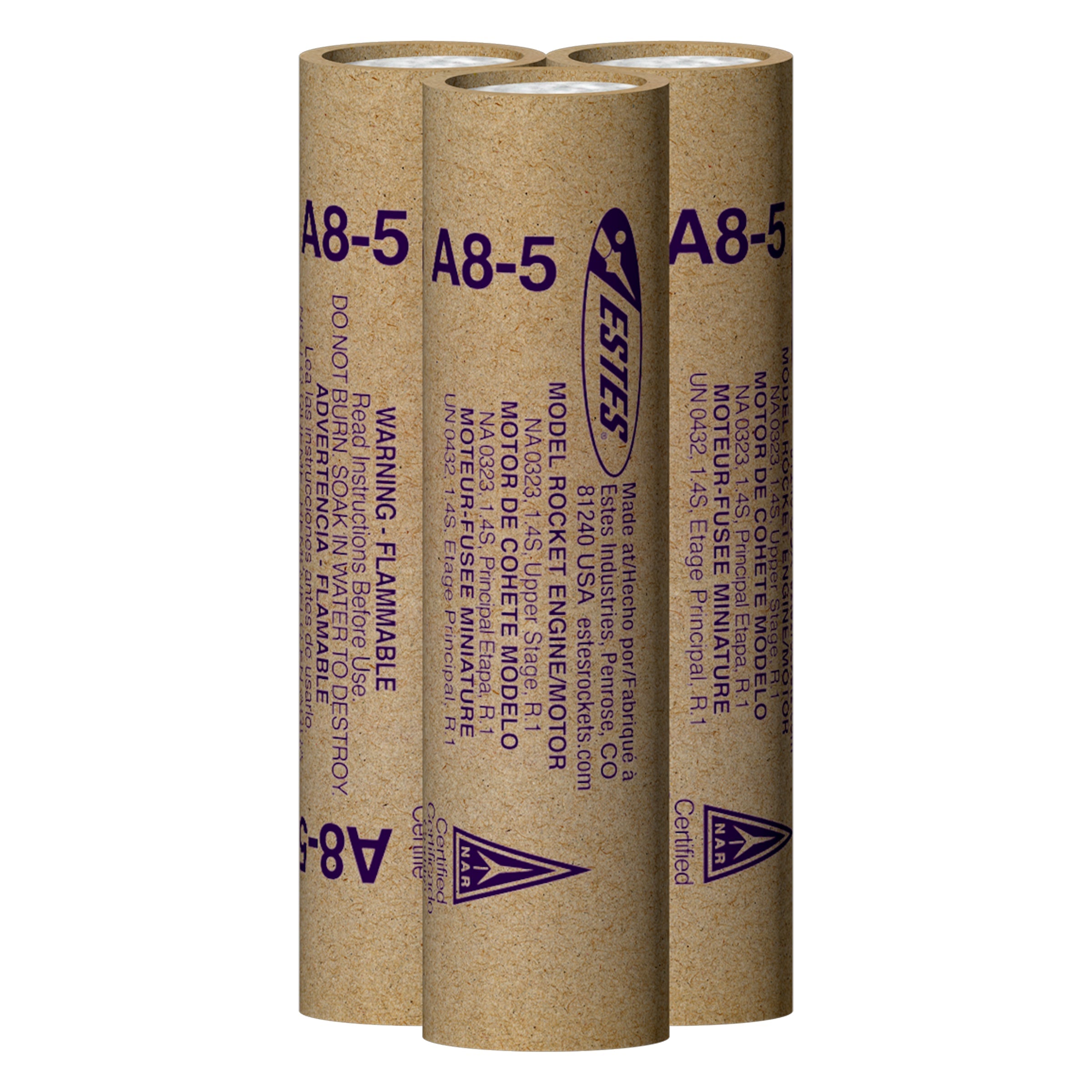

3 – A8-5 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes A8-5 engine is an upper stage stage engine designed for model rocket flight. This engine can also be used as a single stage engine in rockets weighing less than 5 ounces, including the engine. Each package includes 3 engines, 4 starters and 4 plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Estes A8-5 Model Rocket Engines

Compatible Rockets

Wizard™
$15.99
Mongoose
$20.89
Generic E2X®
$14.99
Boosted Bertha™
$36.29

Technical Specifications

Technical Specifications

  • Total Impulse

2.50 N-sec

  • Time Delay

5 Seconds

  • Max Lift Weight

2.0 oz (57 g)

  • Max Thrust

10.70 Newtons (2.4 lbs)

  • Thrust Duration

0.80 Seconds

  • Length

2.8 in. (7 cm)

  • Diameter

18 mm

  • Weight

.55 oz. (15.6 g)

  • Propellant Weight

0.14 oz (4.1 g)

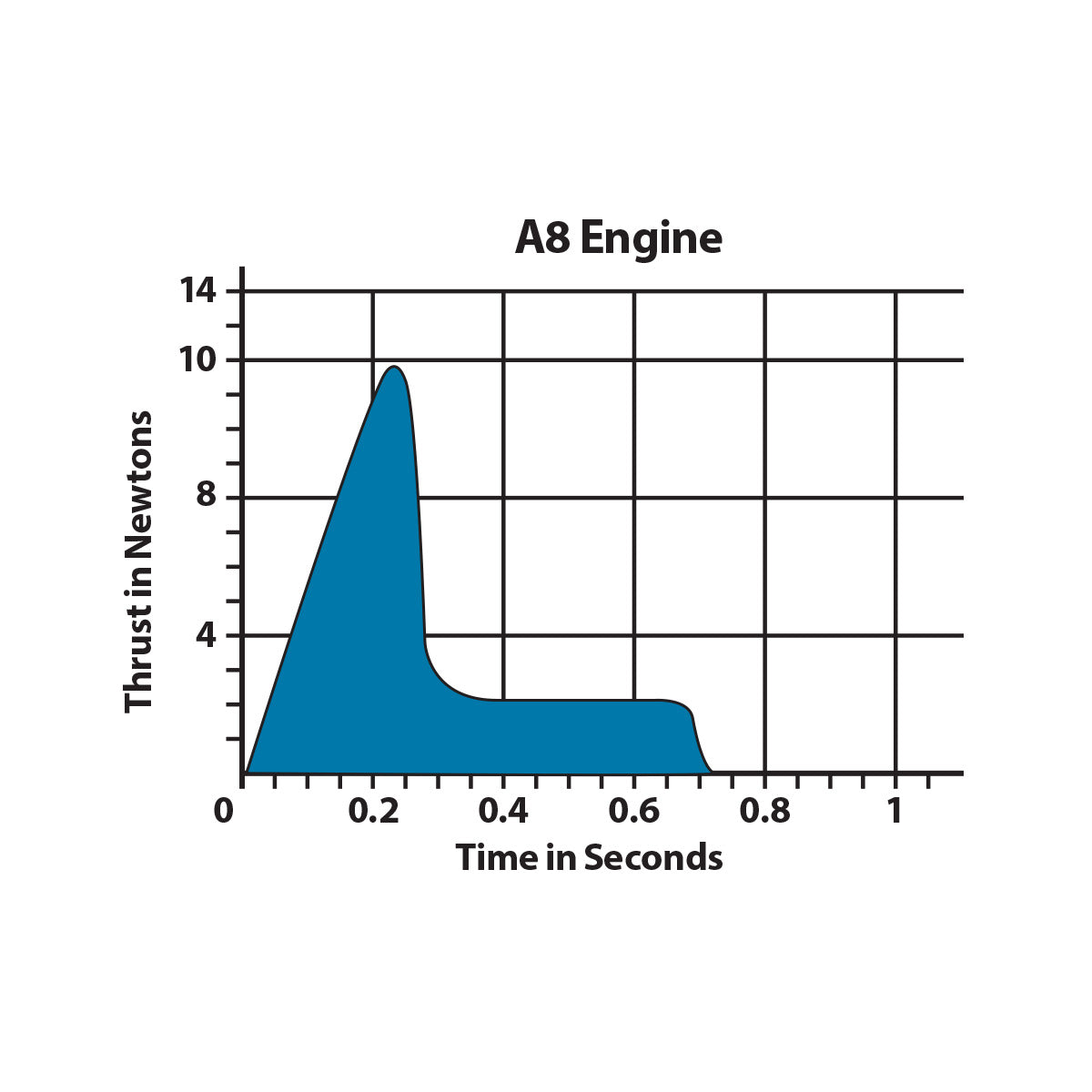

A8 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
A
Alex (Siletz, OR)
A8-5

Worked well, but delay was a little long. Parachute snapped on 2nd flight

J
Jerry Irvine
I am a strong believer in A8-5 motors. Most rockets

I am a strong believer in A8-5 motors. Most rockets actually can use the longer coast time anyway. If you know how to piston launch rockets you are always looking for a longer delay. When I do group programs of 100+ motors I always use rockets well suited to A8-5 and B6-6. The smaller fields and the ability to recover and refly your rocket easily makes lower power, longer delay motors optimal.When I do group programs each user flies at least 2 flights, and on average closer to 4. Estes is uniquely positioned to serve this market.
