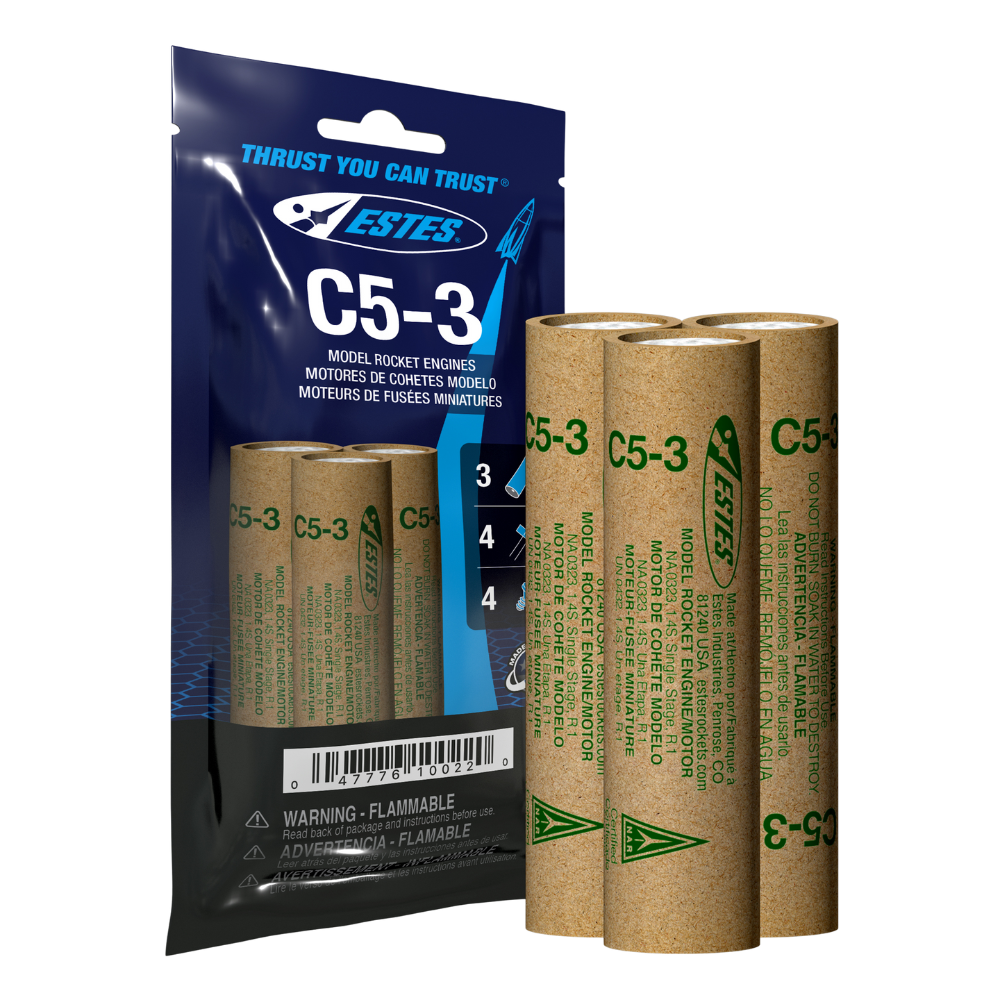

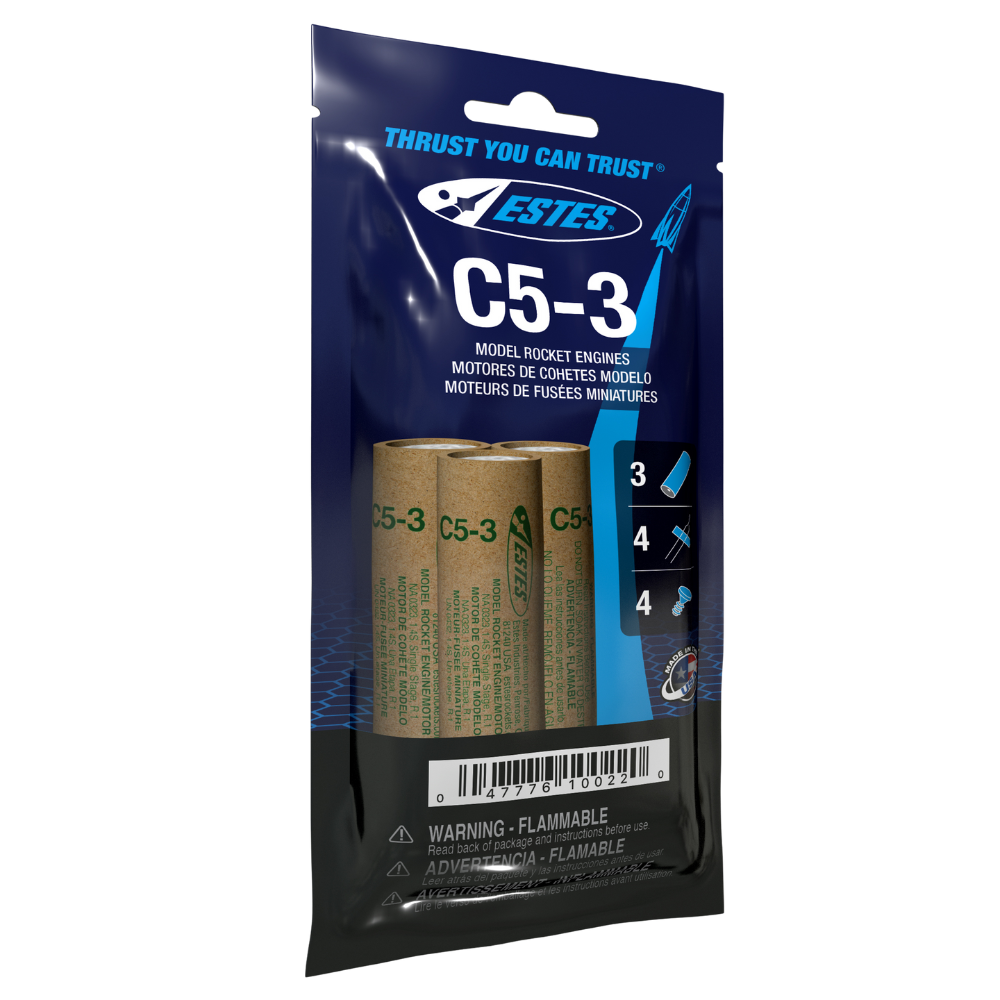

Estes C5-3 Package and Rocket

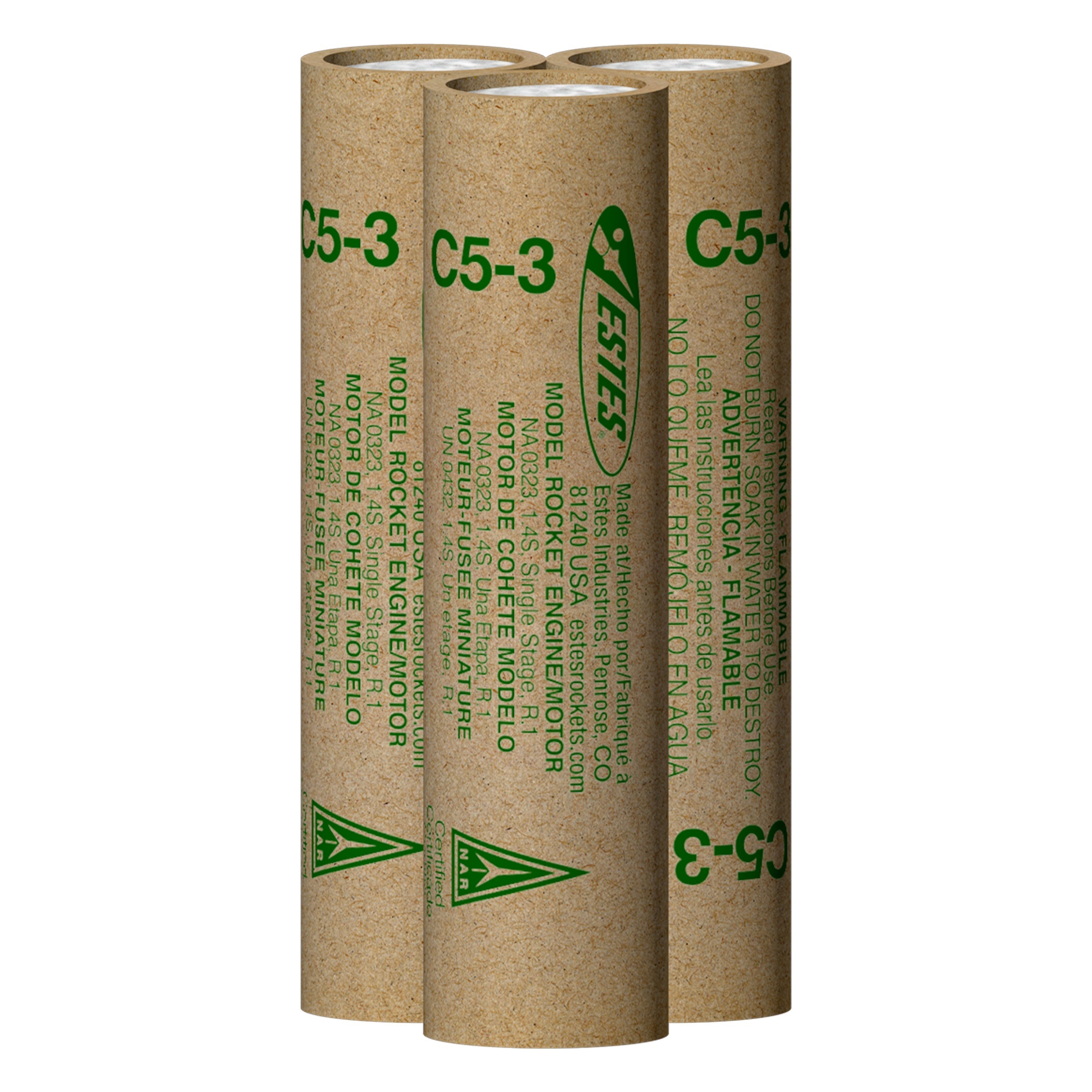

Estes C5-3 1617 Single Engine
Estes Engine Thrust Curve
Estes C5 Engine Thrust Chart
Estes C5-3 Model Rocket Engines
Estes C5-3 Package and Rocket
Estes C5-3 1617 Single Engine
Estes Engine Thrust Curve
Estes C5 Engine Thrust Chart
Estes Rockets

C5-3 Engines

SKU: 001617
UPC: 047776016170
MSRP/MAP: $12.99
$12.99
Sale

ENGINES FOR MODEL ROCKETS

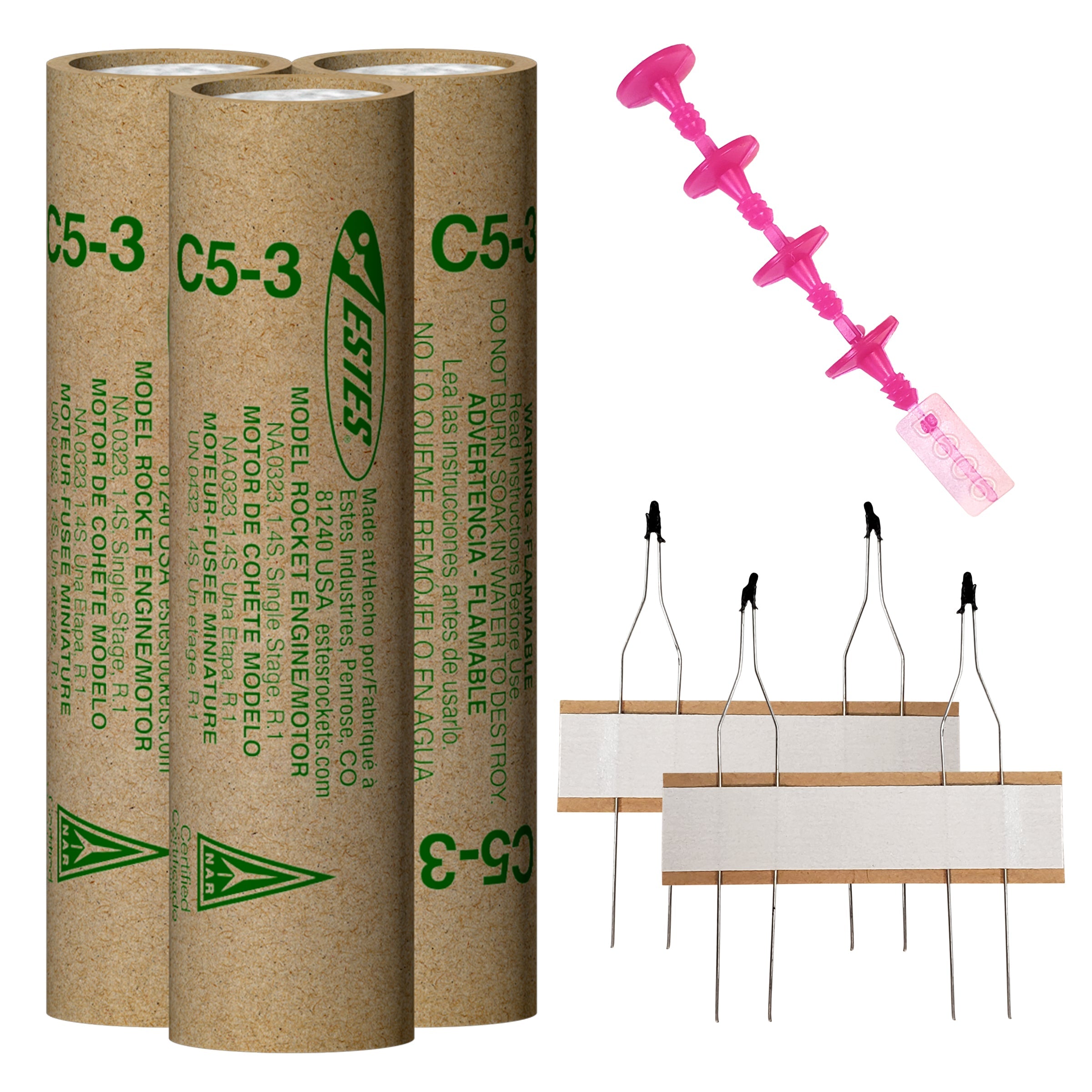

3 – C5-3 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes C5-3 engine means 50% increase in maximum thrust over a standard C engine and the punch you need to propel those heavier rockets off the pad. The Super C is a great choice for larger birds and for payload rockets, like competition egg-lofters, that need that extra push.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Estes C5-3 Model Rocket Engines

Compatible Rockets

Space Corps™ DARC-1™
$32.99
Solo™
$21.99
NASA SLS
$76.99
Blue Origin New Shepard
$69.99

Technical Specifications

Technical Specifications

  • Total Impulse

10.00 N-Sec

  • Time Delay

3 Seconds

  • Max Lift Weight

8.0 oz

  • Max Thrust

20.40 Newtons (4.6 lbs)

  • Thrust Duration

1.85 Seconds

  • Length

2.8 in. (7 cm)

  • Diameter

18 mm

  • Weight

0.83 oz. (23.6 g)

  • Propellant Weight

0.39 oz (11 g)

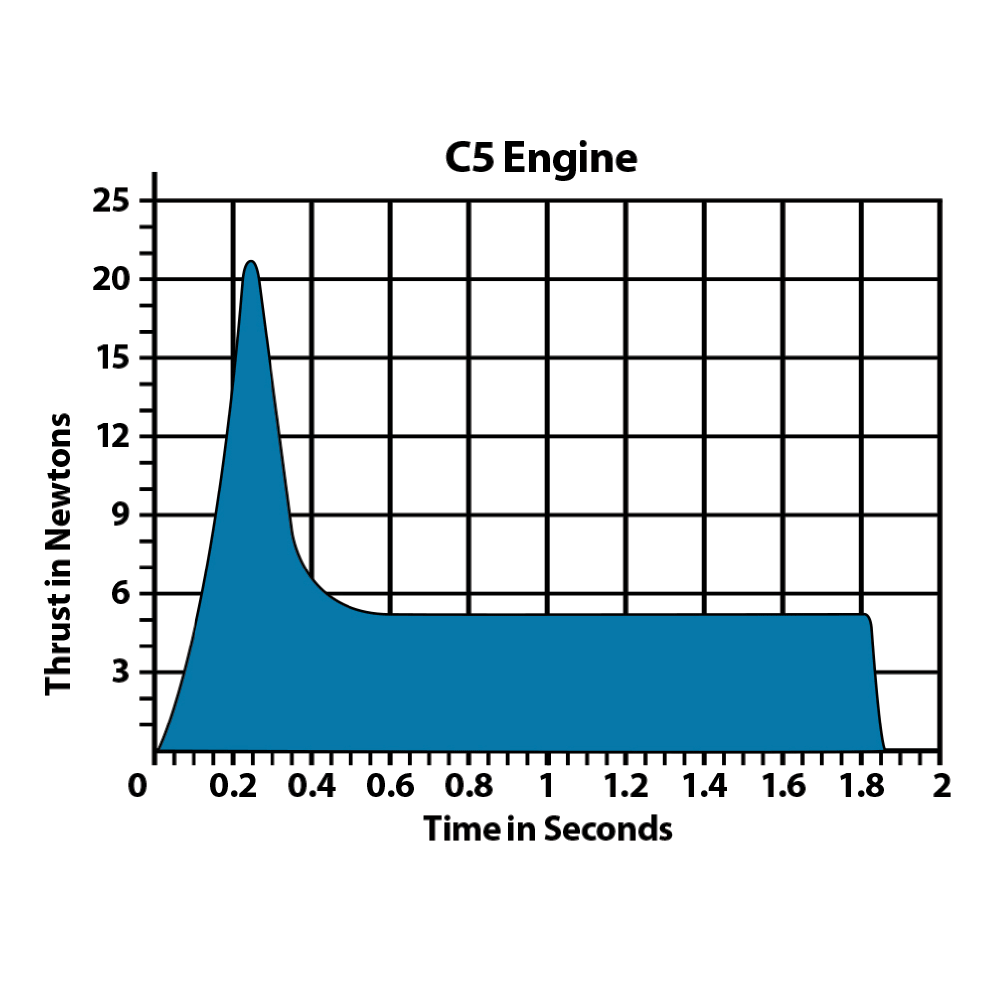

C5 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
ANTHONY ZEFFIRO (Fort Lauderdale, FL)
C5-3…Rocks!!!!

Absolutely a great powerful engine! Extremely reliable and powerful enough to provide a dependable flight! This engine delivers an incredible amount of thrust to propel just about any rocket to amazing heights! I highly recommend the great Estes C5-3 engine to consistently provide reliability & efficiency for amazing flights for Estes rockets that demand this engine that Elon Musk would be proud of!!!!

a
a.f. (Berkeley, CA)
extra powerful

the Super in these "Super C" motors definitely gives the rockets a nice extra push UP

P
Paul Hurtt (California, MD)
C5-3: Great engine!

Used the C5-3 on my 3rd flight of my " Boosted Bertha" 2nd stage. The C5-3 on the 3rd flight put it almost out of sight! My Grandson who launched it shouted out loud when the 2nd stage ignited. You could hear it on the ground! The smoke trail was easy to see. ' Chute deployed as advertised. Unfortunately our Boosted Bertha was grabbed by a rocket eating tree as it floated down to earth. No chance of getting it back. :-(
