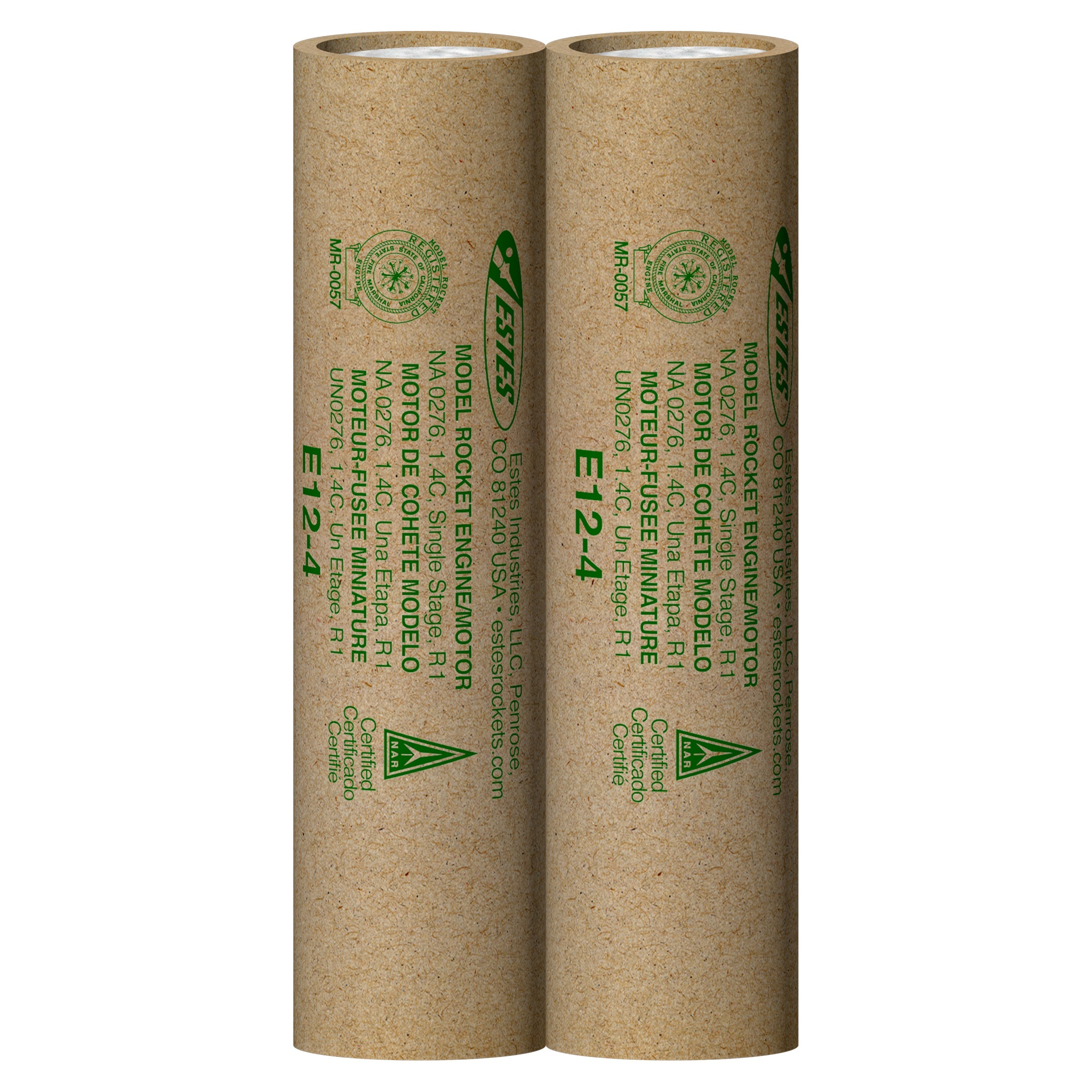

Estes E12-4 Model Rocket Engines
E12-4 Rocket Engine
E12 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Chart Explanation
Estes E12-4 Model Rocket Engines
E12-4 Rocket Engine
E12 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Chart Explanation
Estes Rockets

E12-4 Engines

SKU: 001692
UPC: 047776016927
MSRP/MAP: $26.49
$26.49
Sale Sold out

ENGINES FOR MODEL ROCKETS

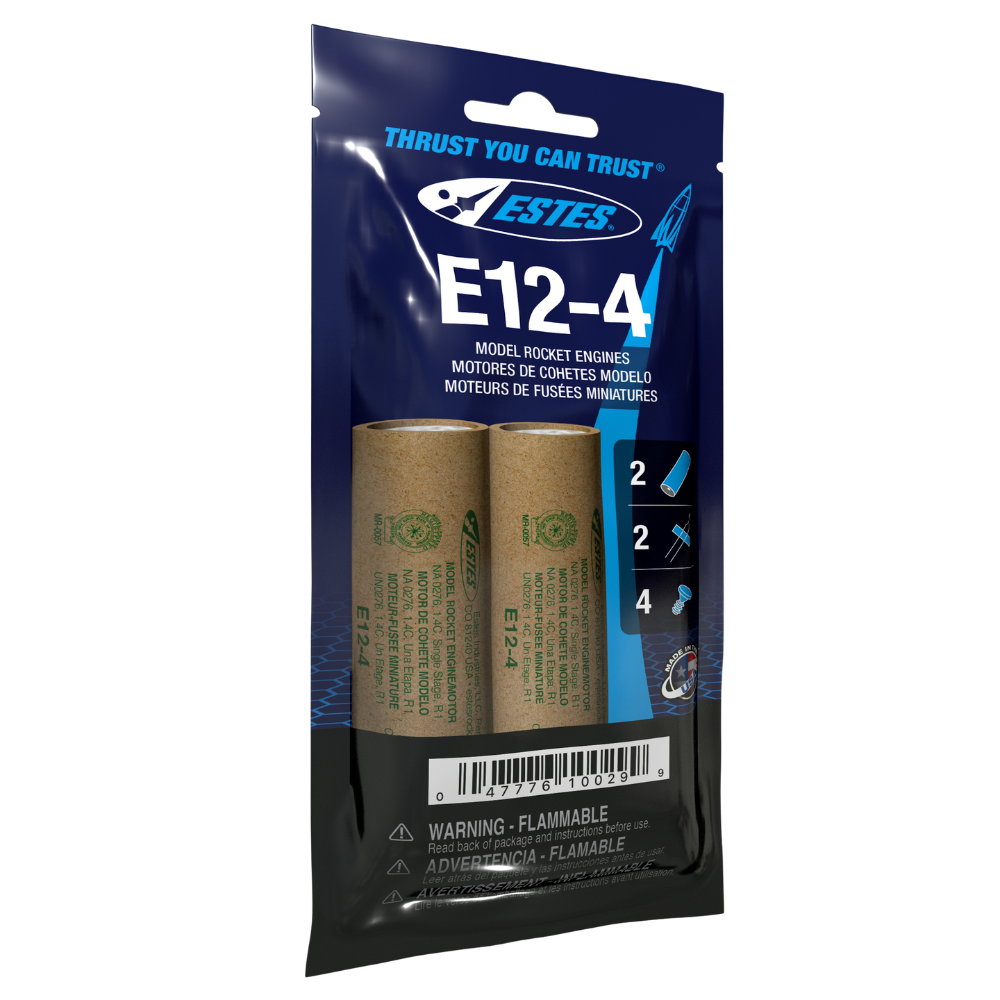

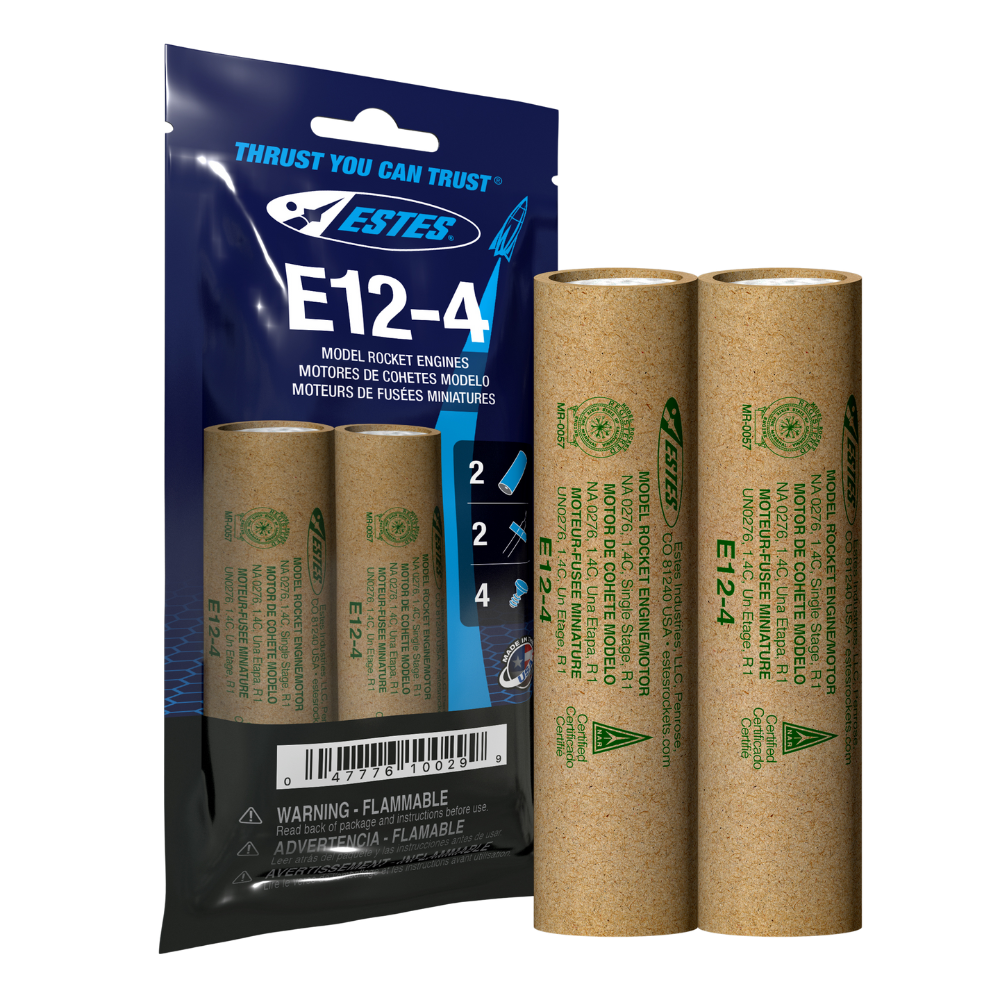

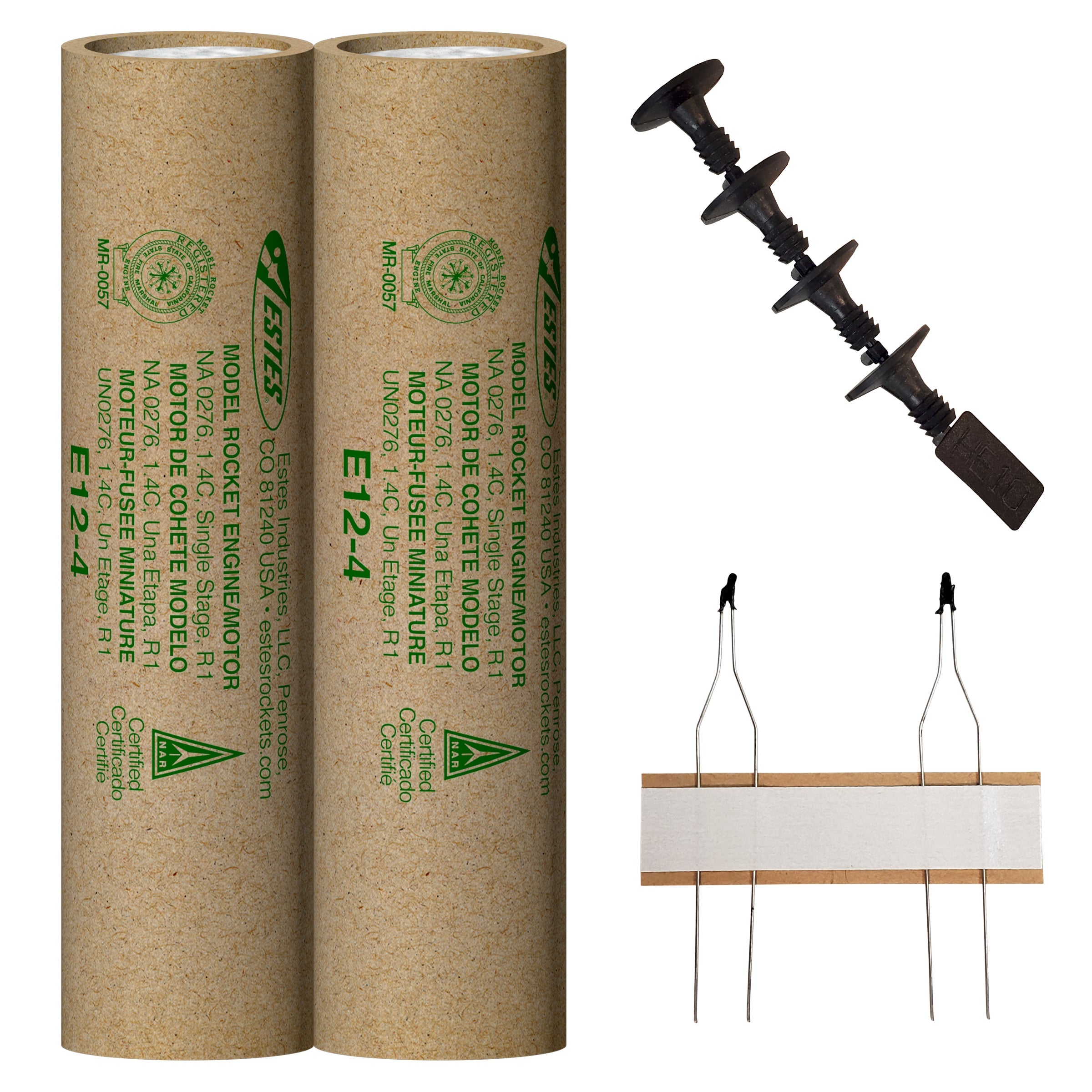

3 – E12-4 Engines
4 – Starters
4 – Starter Plugs

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes E12-4 engine is 24mm diameter an upper stage engine designed for model rocket flight. This engine can also be used as a single stage engine. Maximum lift weight is 17 ounces. Each package includes 3 engines, 4 starters and 4 starter plugs.

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

E12-4 Rocket Engine

Compatible Rockets

Destination Mars™ Mars Longship™
$37.99
Saturn 1B
$76.99
Pro Series II™ Majestic™
$53.99
Mean Machine™
$35.99

Technical Specifications

Technical Specifications

  • Total Impulse

30.00 N-sec

  • Time Delay

4 Seconds

  • Max Lift Weight

17.0 oz (482 g)

  • Max Thrust

30.60 Newtons (6.9 lbs)

  • Thrust Duration

2.70 Seconds

  • Length

3.8 in. (9.7 cm)

  • Diameter

24 mm

  • Weight

2.16 oz. (61.2 g)

  • Propellant Weight

1.3 oz (36.9 g)

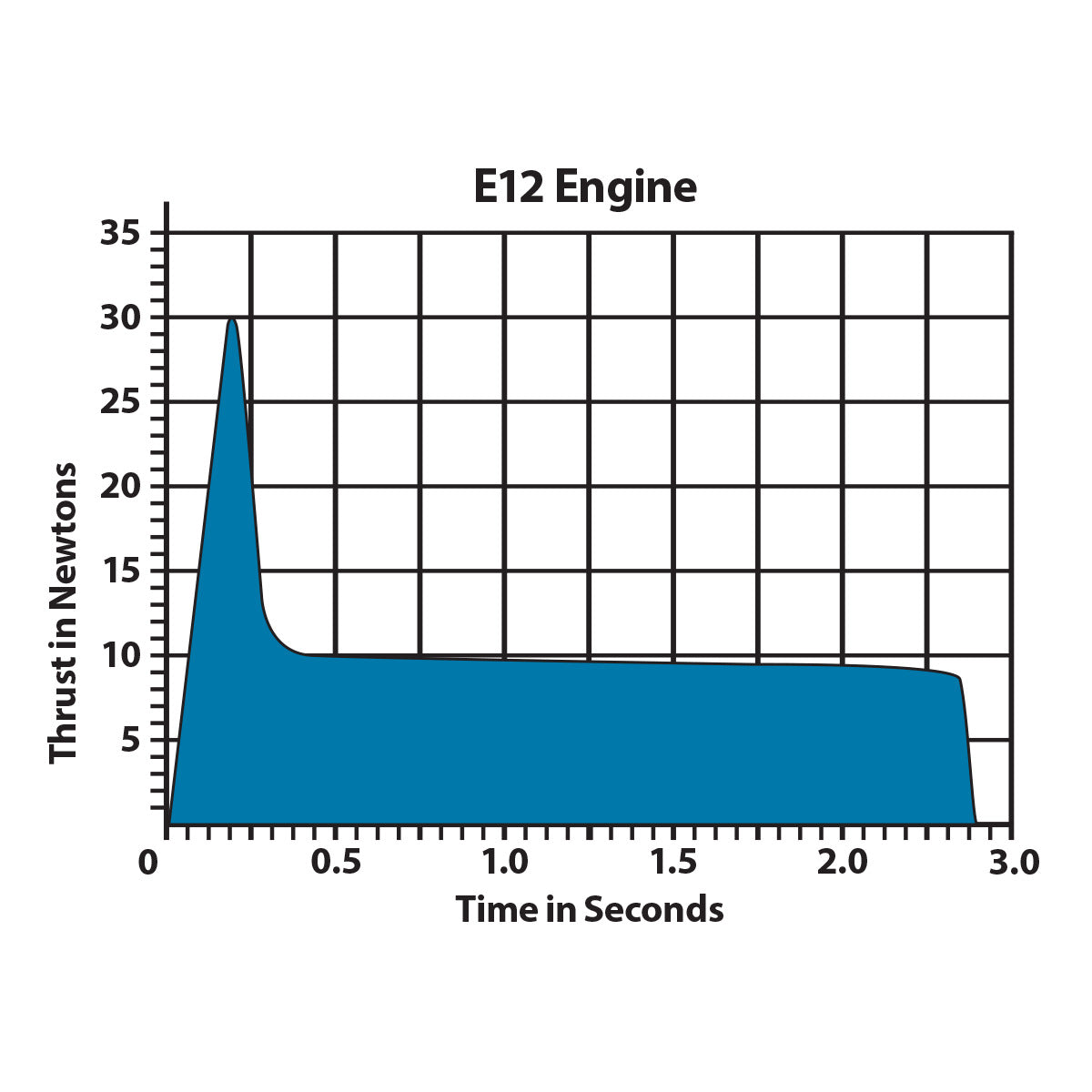

E12 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous (Henderson, NV)
My go to motor for the Inter-X-ceptor.

Excellent flight results every time with this motor. Great lift, smoke and deployment.

User picture User picture
H
Harlen Warner (Tama, IA)
Awesome customer service

I had a rocket engine fail to launch. It just detonated and destroyed my Cherokee e rocket. I sent an email with questions regarding the motor failure and Estes without hesitation replaced the motors and not only did they send me a replacement rocket they sent me an upgrade. Thanks

F
Frank DeAngelo (Cambridge, MA)
E12-4 Are Good Engines

All three engines fired perfectly without any problems.
