1/4A3-3T Engine
1/4 A3 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Chart Explanation

1/4A3-3T Engines

SKU: 001502
UPC: 047776015029
MSRP/MAP: $11.29
$11.29
Sale

ENGINES FOR MODEL ROCKETS

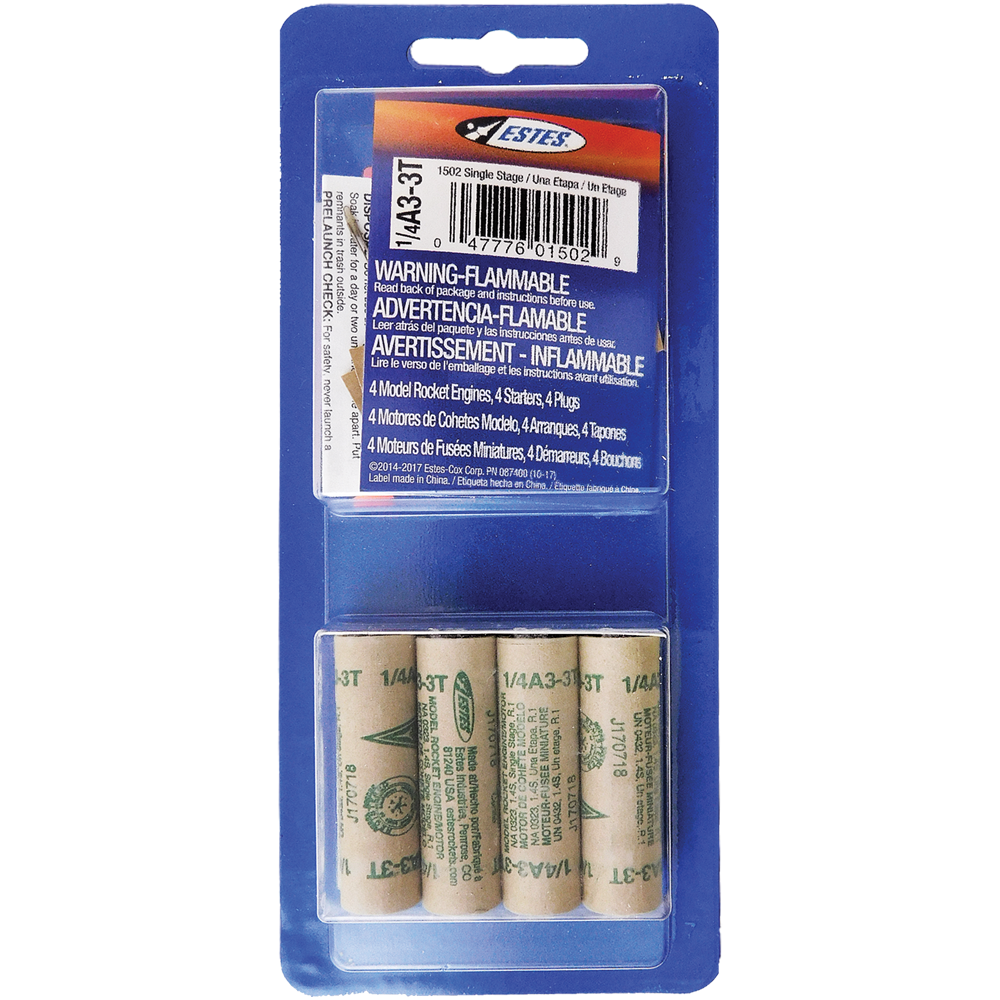

4 – 1/4A3-3T Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes 1/4A3-3T engine is single stage engine designed for model rocket flight. This engine is a mini engine designed for flights in lightweight rockets. Each package includes 4 engines, 4 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

1/4A3-3T Engine

Technical Specifications

Technical Specifications

  • Total Impulse

0.625 N-sec
  • Time Delay

3 Seconds
  • Max Lift Weight

1.0 oz (28 g)
  • Max Thrust

4.90 Newtons (1.1 lbs)
  • Thrust Duration

0.25 Seconds
  • Length

1.75 in. (4.4 cm)
  • Diameter

13 mm
  • Weight

.21 oz. (6 g)
  • Propellant Weight

0.05 oz (1.3 g)

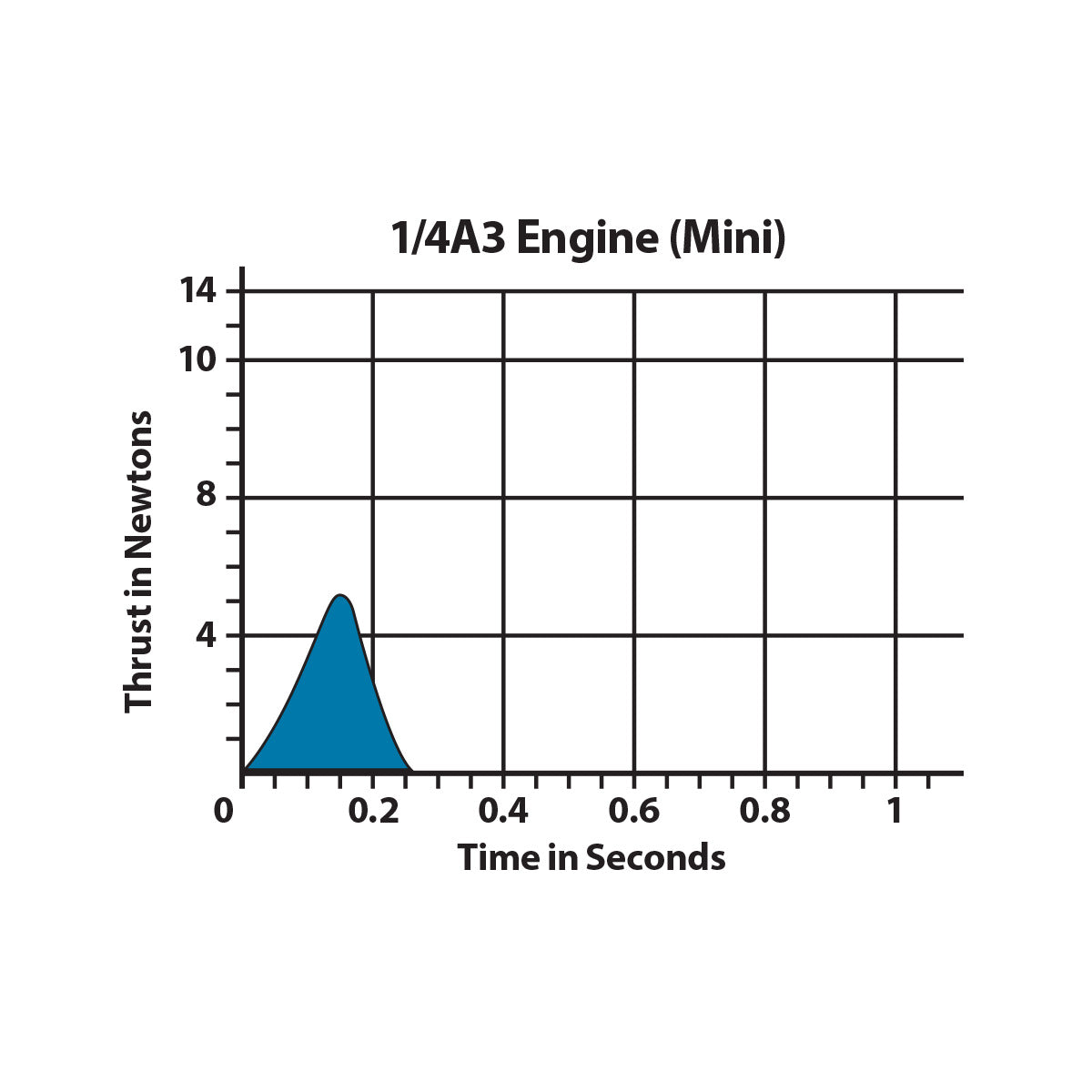

1/4 A3 Model Rocket Engine Thrust Curve Chart
