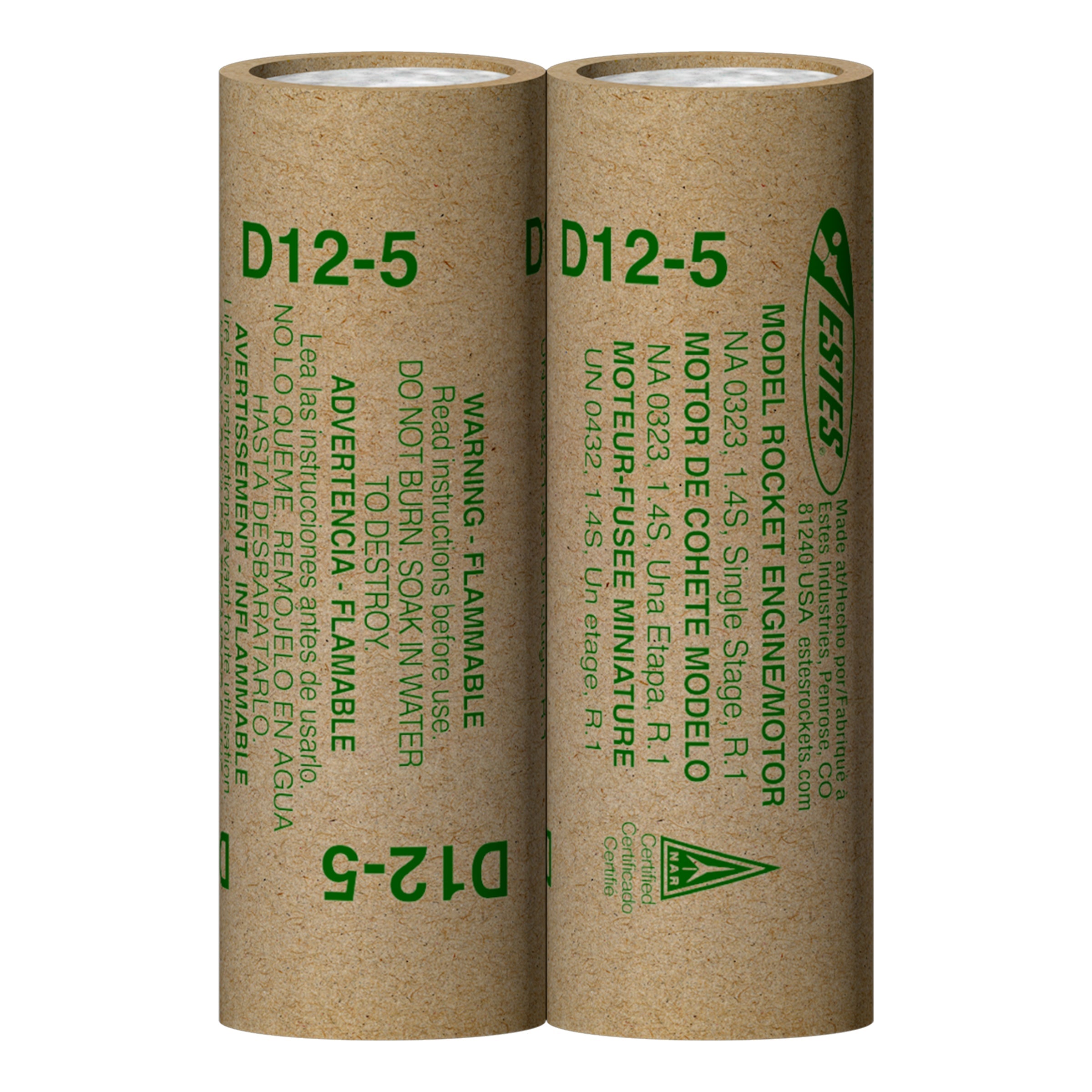

D12-5 Engines

SKU: 010028
UPC: 047776100282
MSRP/MAP: $14.99
$14.99
Sale

The Estes D12-5 engine is a high-thrust motor with a 5-second delay, perfect for rockets that benefit from extended coast time before recovery deployment. It’s ideal for heavier single- or multi-stage models requiring reliable power and timing.

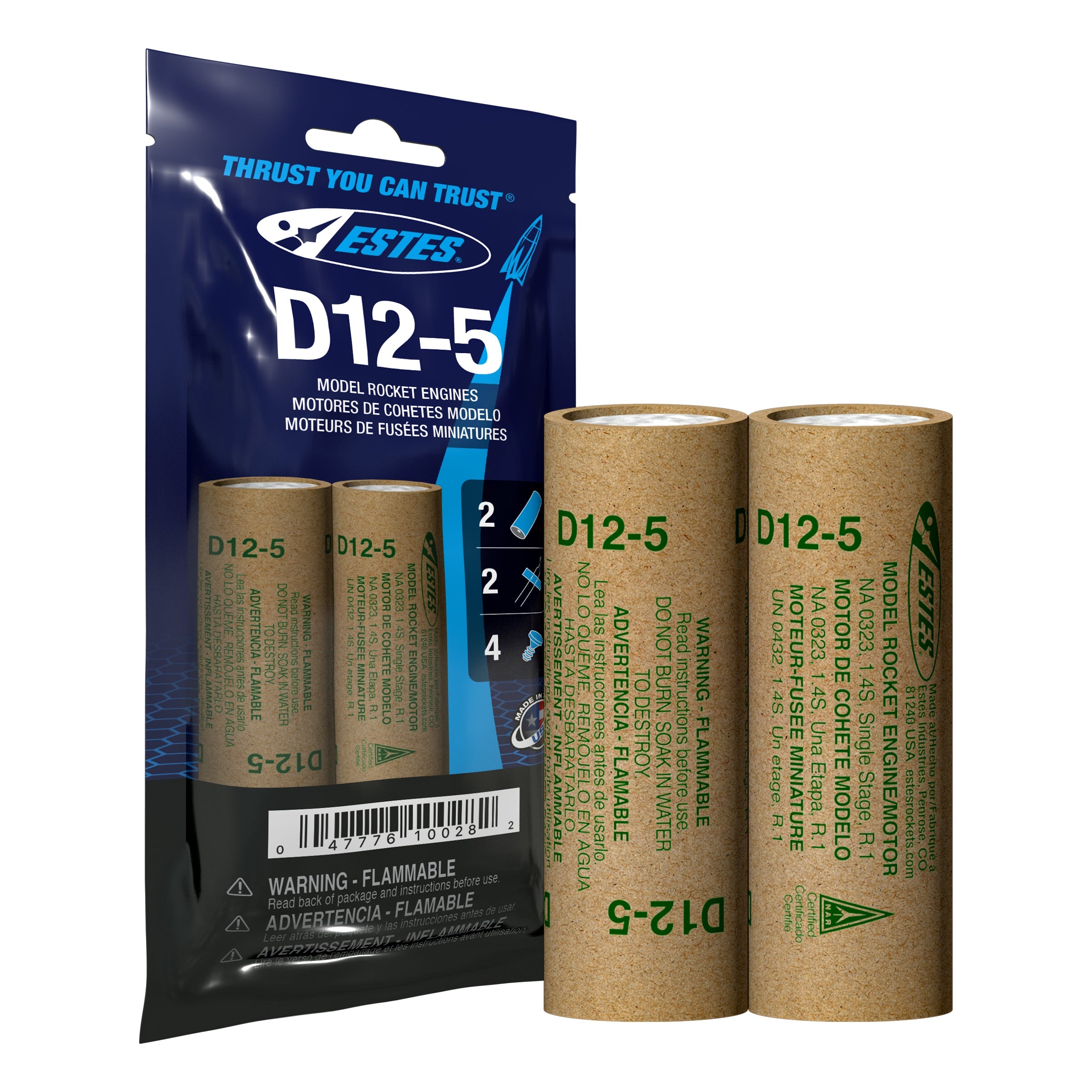

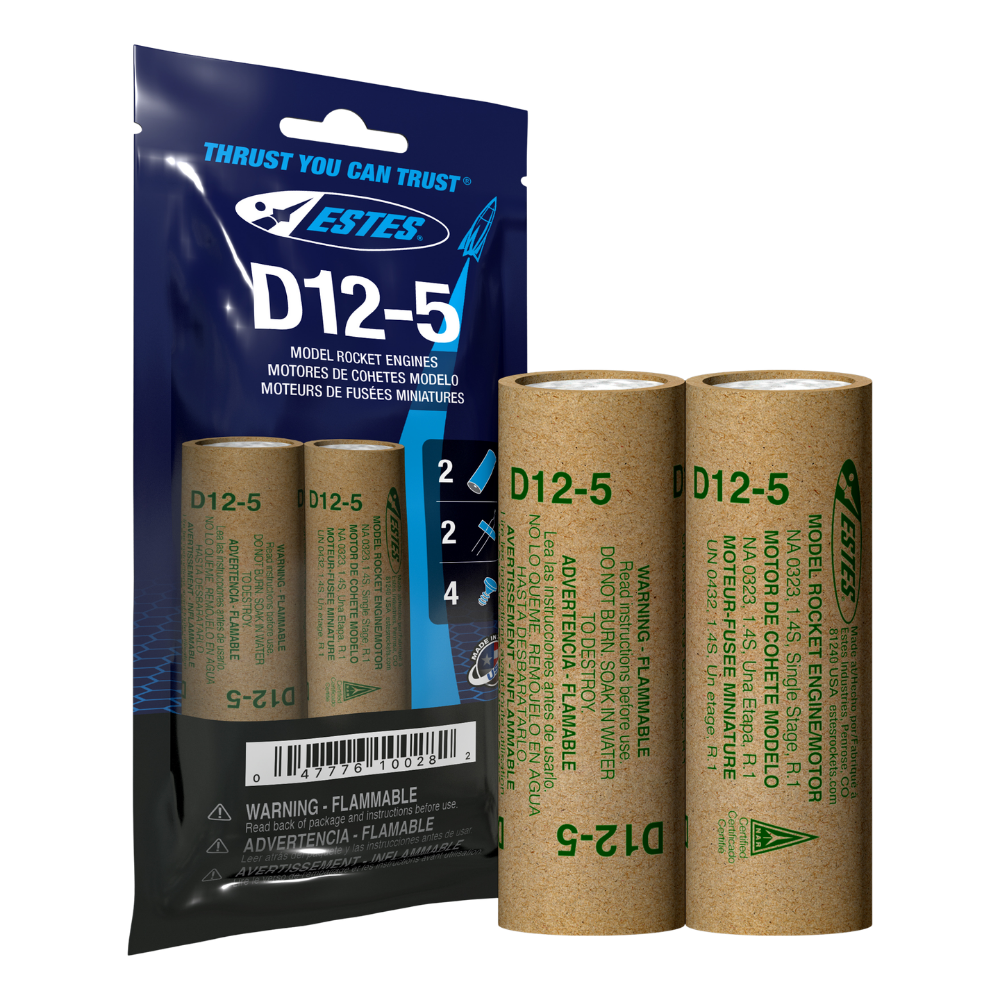

Each package includes two engines, two starters, and four starter plugs. With Estes’ trusted quality and NAR certification, the D12-5 is built for smooth, dependable launches every time.

Includes:
- 2 D12-5 Engines
- 2 Starters
- 4 Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes D12-5 engine is a high-thrust motor built for model rockets that need strong liftoff power and a longer coast before deploying their recovery system. With a 5-second delay between engine burnout and ejection, it gives your rocket extra time to climb before the parachute or other recovery method activates—perfect for heavier rockets or those designed for extended flights.

This engine is a great match for a variety of Estes kits and custom builds that support D-engine power. Whether you're flying a single-stage rocket or the upper stage of a multi-stage setup, the D12-5 delivers reliable, consistent performance with every launch. The longer delay helps improve flight stability and timing, giving your rocket a smoother arc and more controlled descent.

Each package includes two D12-5 engines, two starters, and four starter plugs. You’ll have what you need to get your rocket ready for the next launch, with parts that fit easily into standard Estes engine mounts. Everything is packaged with care and built to meet Estes’ trusted quality standards.

Whether you’re moving up from smaller C engines or fine-tuning a more advanced rocket, the D12-5 is a solid, dependable choice. It offers the right mix of power and delay for rockets that need a little more time in the sky before coming back to Earth.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Estes D12-5 Rocket Engines with Plugs and Ignitors

Technical Specifications

Technical Specifications

  • Total Impulse

20.00 N-Sec
  • Time Delay

5 Seconds
  • Max Lift Weight

10.0 oz (283 g)
  • Max Thrust

32.90 Newtons (7.4 lbs)
  • Thrust Duration

1.60 Seconds
  • Length

2.75 in. (7 cm)
  • Diameter

24 mm
  • Weight

1.61 oz. (45.6 g)
  • Propellant Weight

0.85 oz (24.2 g)
D12 Model Rocket Engine Thrust Curve Chart
