Estes B6-0 Engines
B6 Model Rocket Engine Thrust Curve Chart

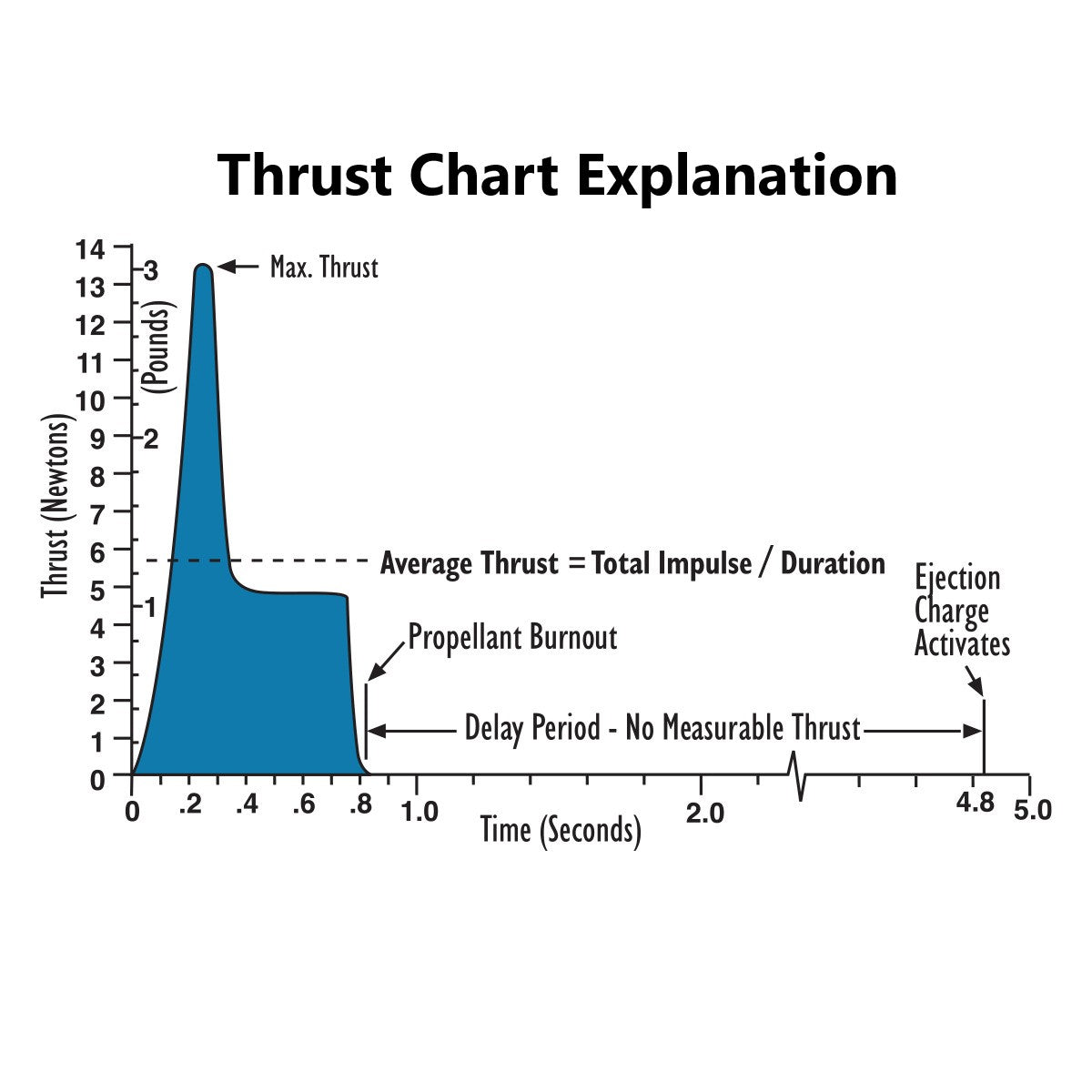

Model Rocket Thrust Curve Chart Explanation

B6-0 Engines

SKU: 001608
UPC: 047776016088
MSRP/MAP: $11.99
$11.99
Sale

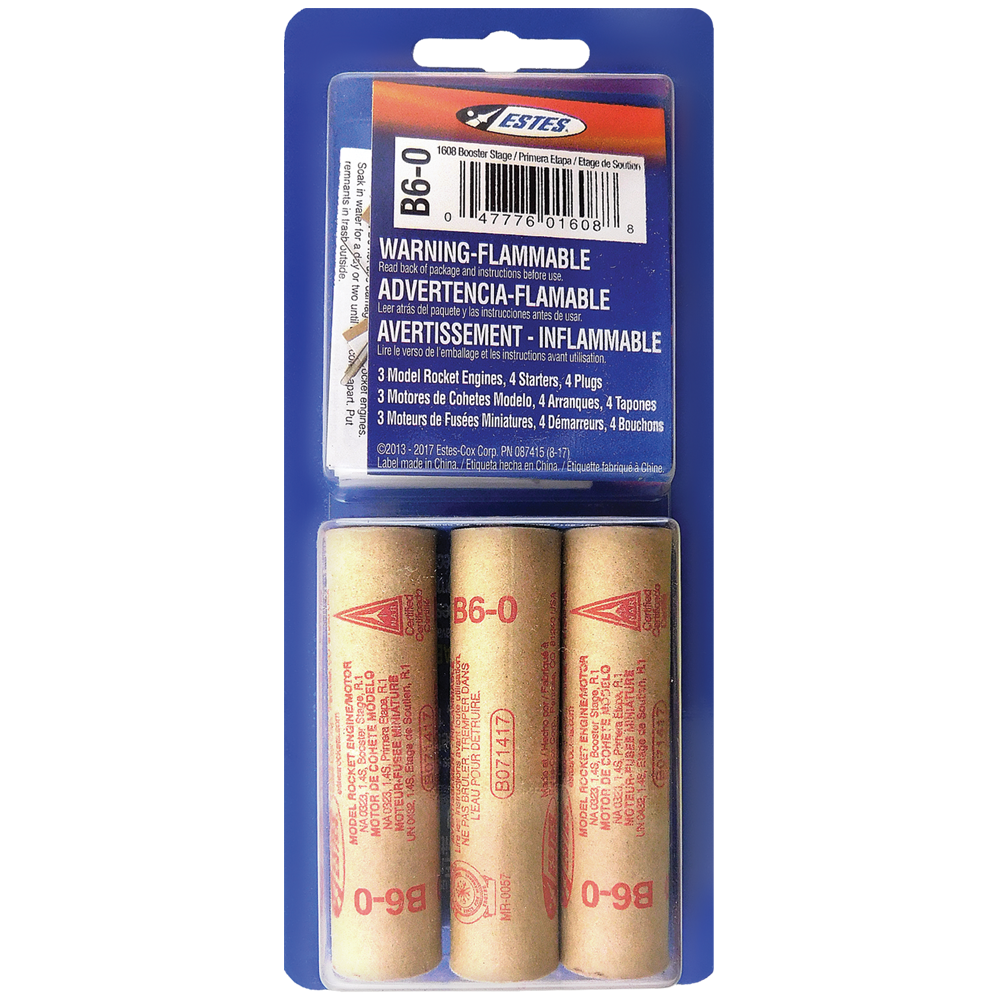

ENGINES FOR MODEL ROCKETS

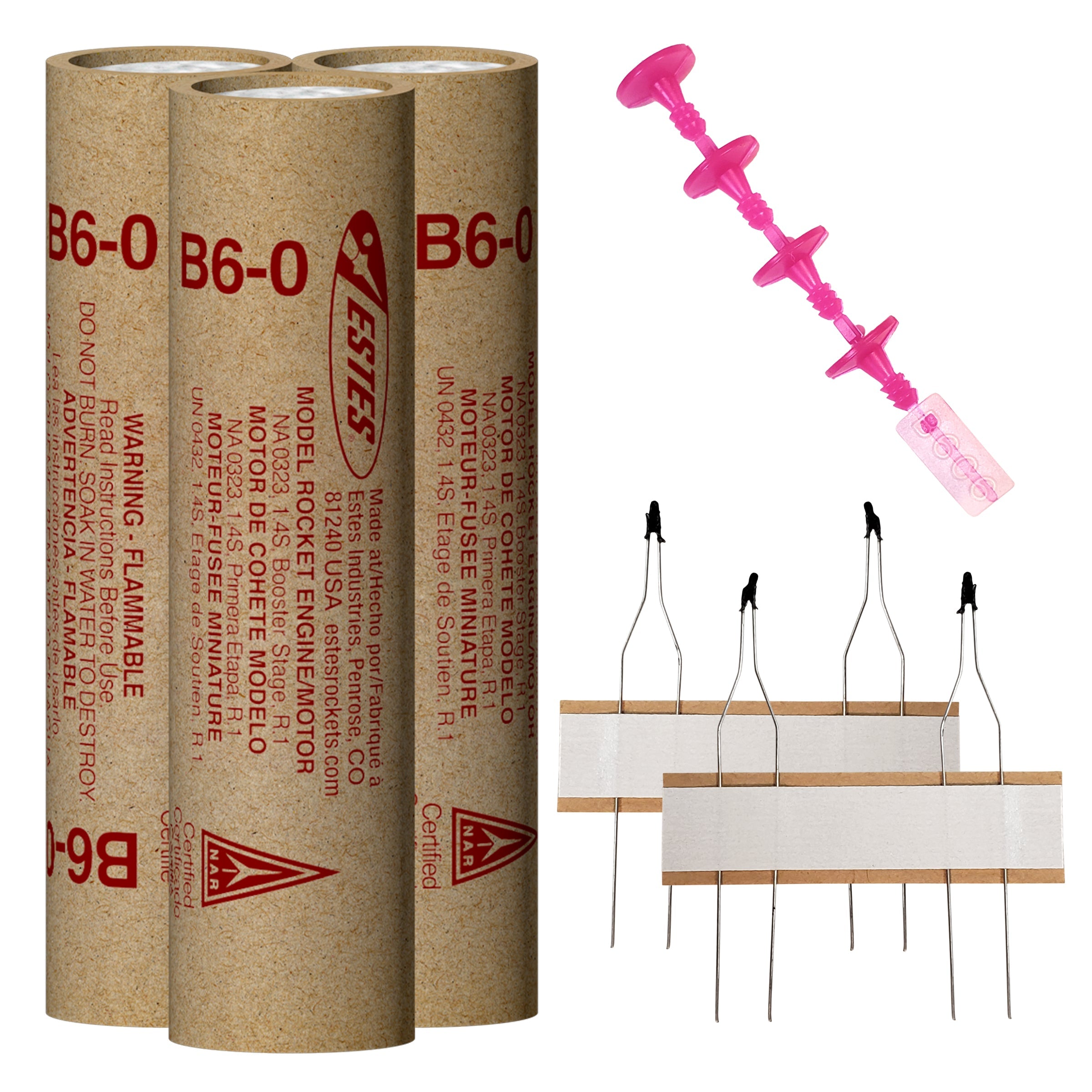

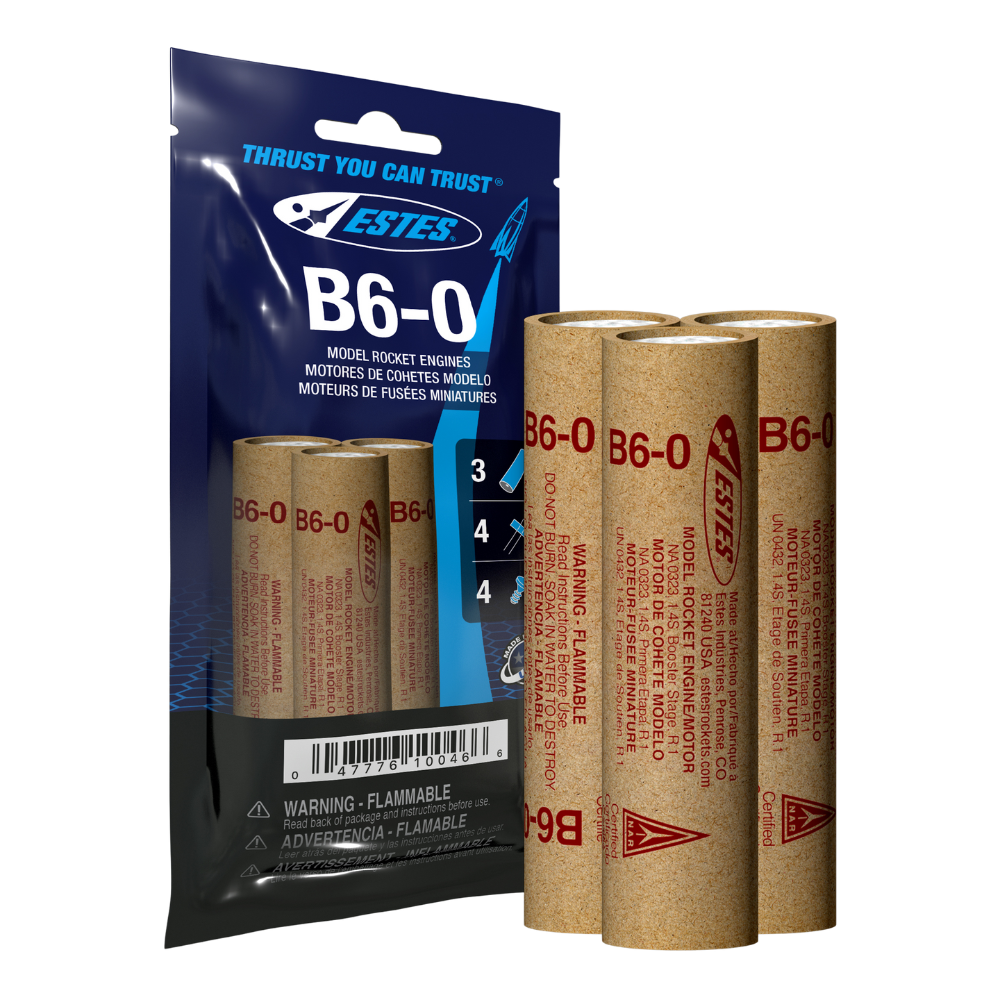

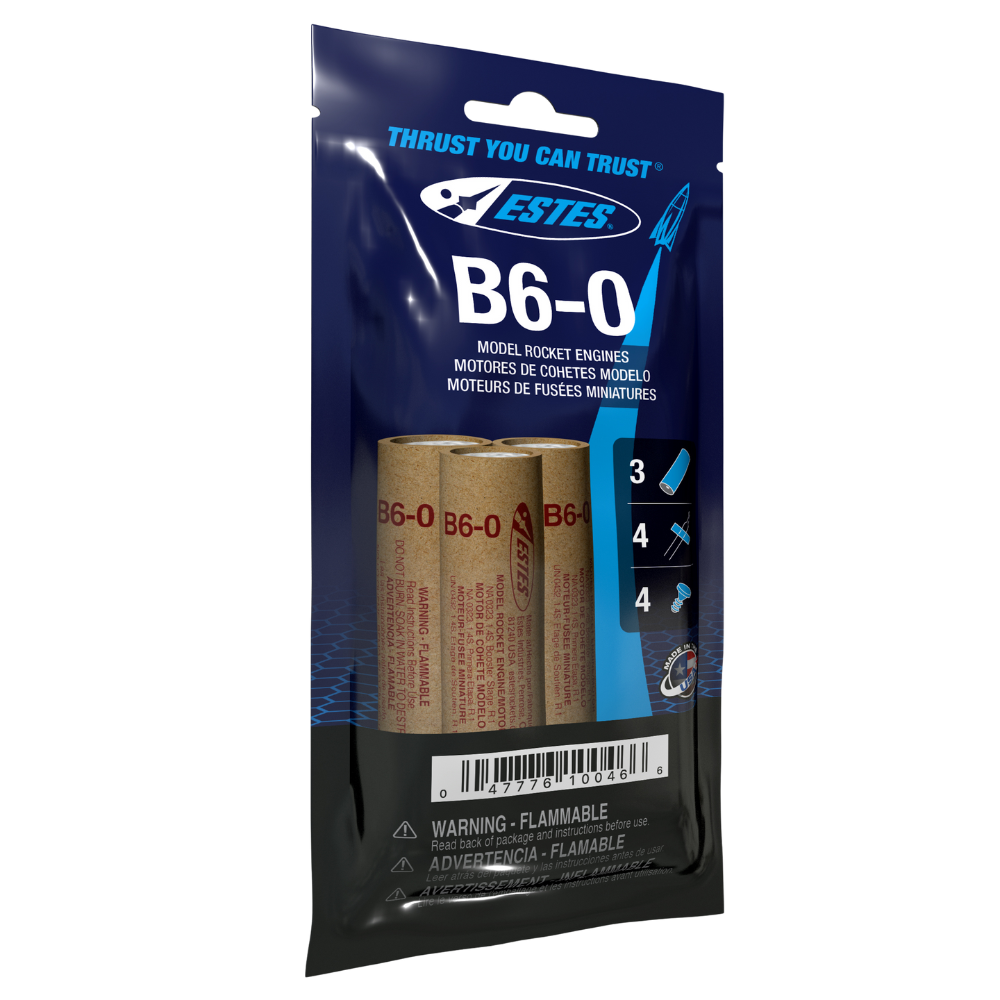

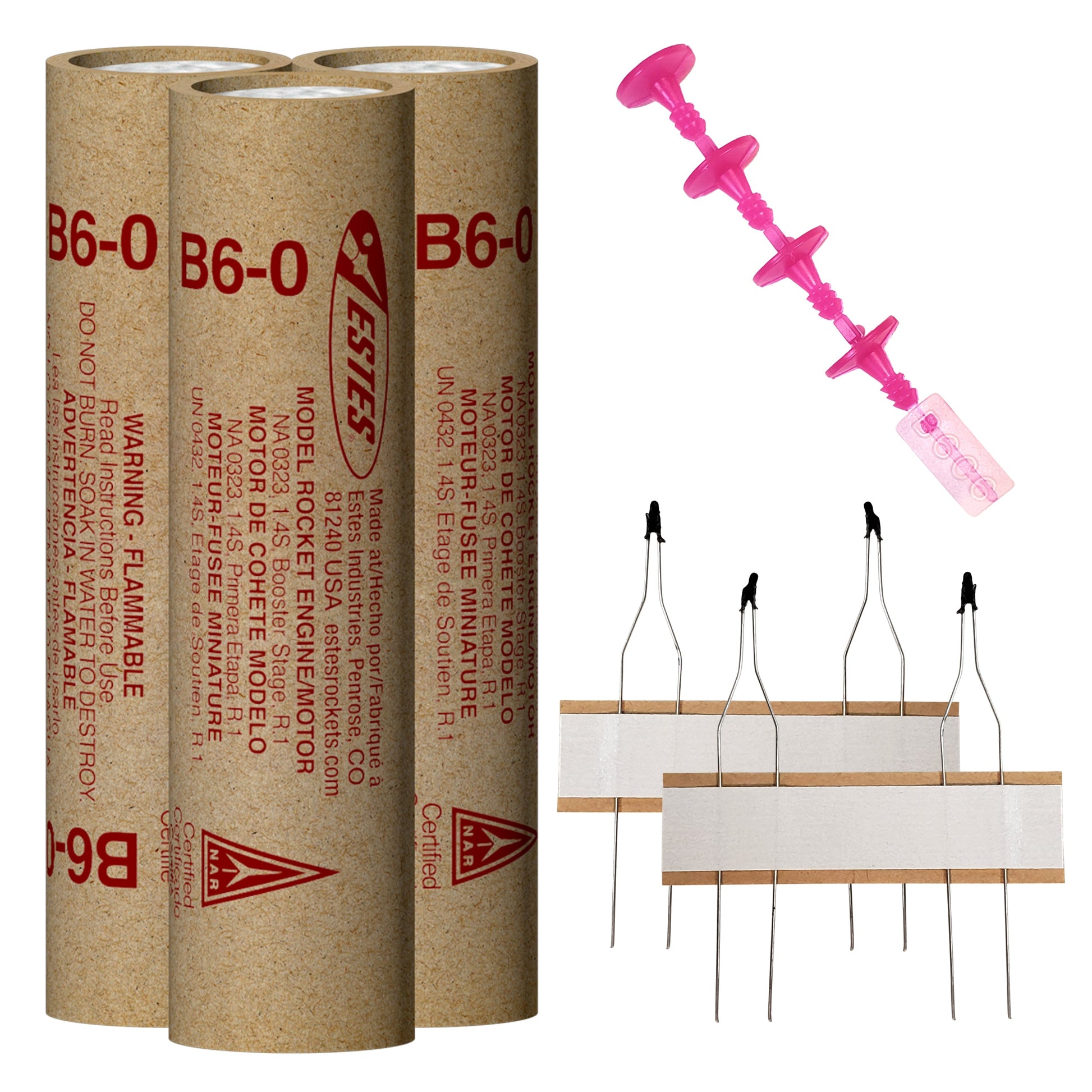

3 – B6-0 Engines

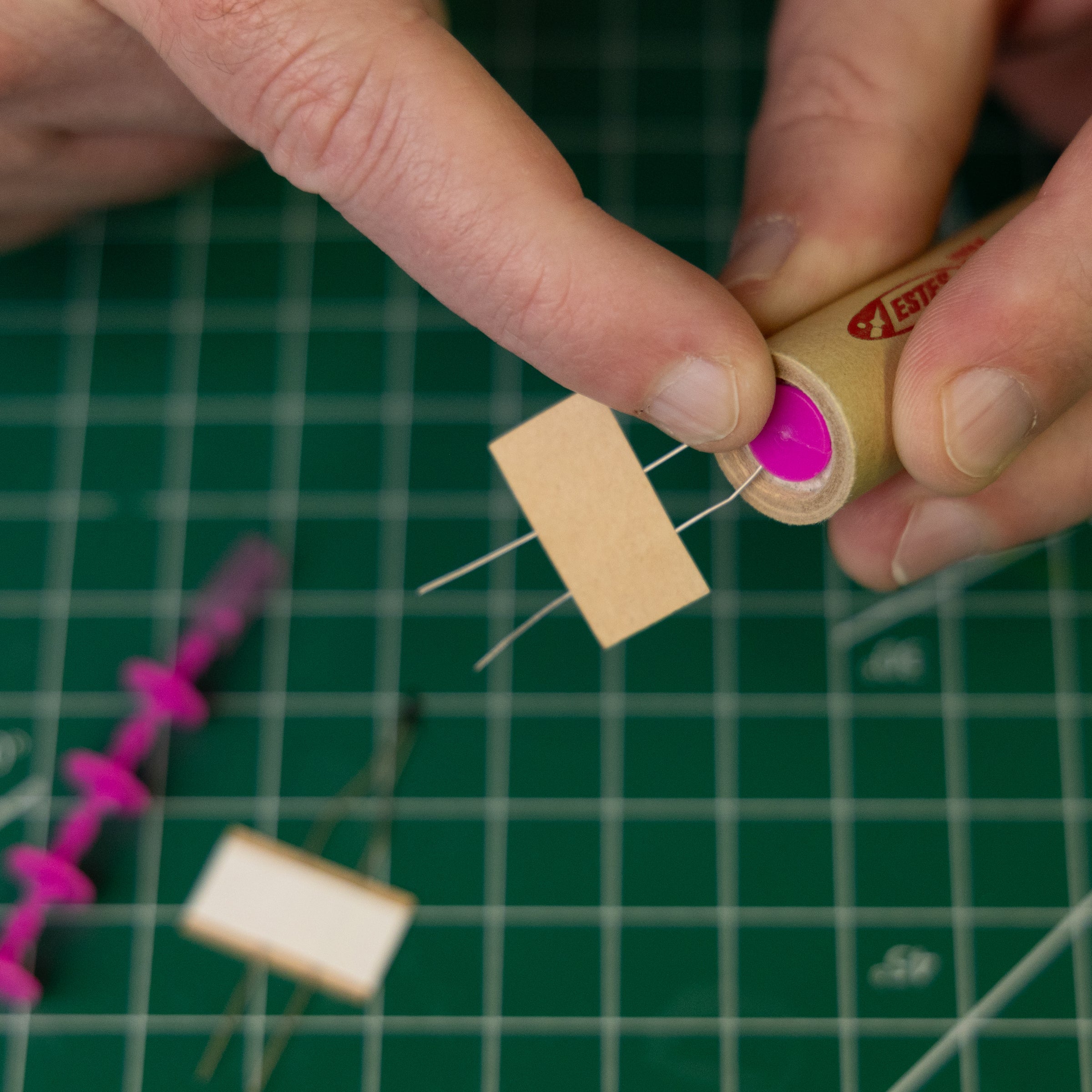

4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

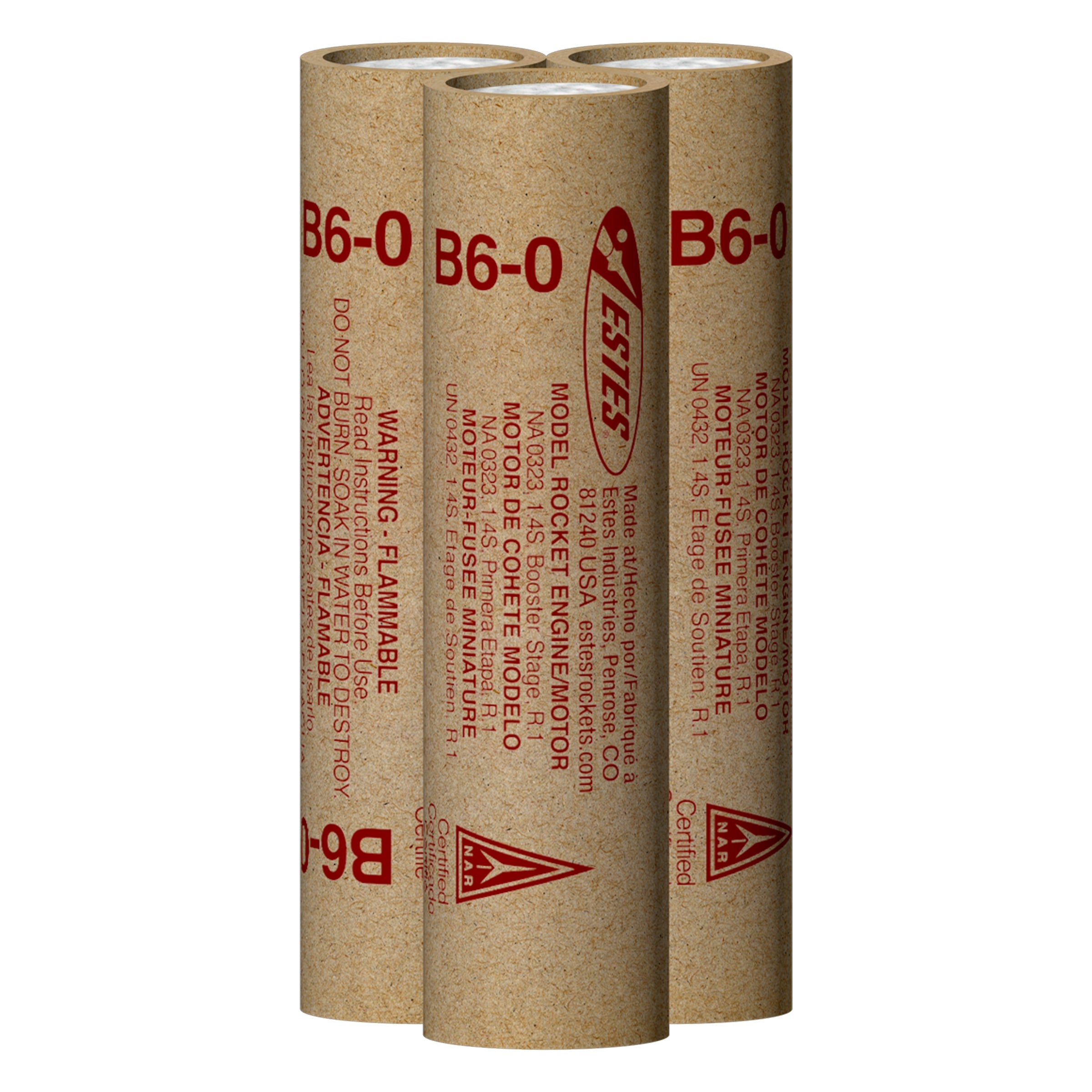

The Estes B6-0 engine is a booster stage engine designed for model rocket flight and has to be used with a standard engine. This engine is for flights in rockets weighing less than 4 ounces, including the engines. Each package includes 3 engines, 4 starters and 4 plugs.

ATTENTION: Estes Industries, LLC requires all purchasers and users of Estes® Model Rocket Engines to adhere strictly to all applicable local, state, and federal laws, regulations, and safety standards. The user assumes all responsibility for the safe and lawful use of Estes® products. Estes Industries, LLC expressly disclaims any and all liability for personal injury, property damage, or other loss resulting from the misuse, improper handling, or unauthorized application of its model rocket engines.

Estes B6-0 Engines

Compatible Rockets

Technical Specifications

Technical Specifications

  • Total Impulse

5.00 N-sec
  • Time Delay

None
  • Max Lift Weight

4.0 oz (113 g)
  • Max Thrust

12.10 Newtons (2.7 lbs)
  • Thrust Duration

0.80 Seconds
  • Length

2.8 in. (7 cm)
  • Diameter

18 mm
  • Weight

.55 oz. (15.6 g)
  • Propellant Weight

0.23 oz (6.5 g)

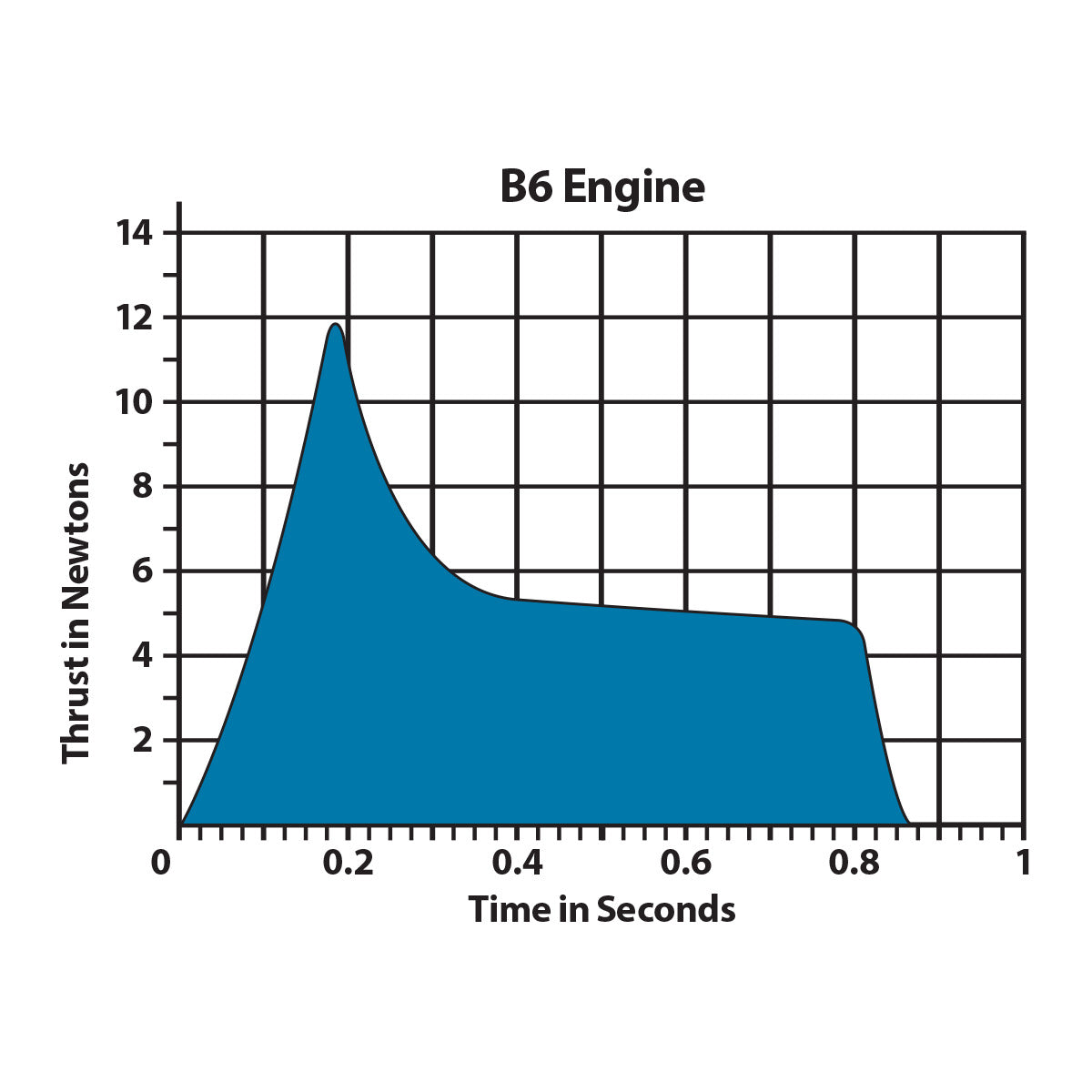

B6 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Customer (Hamburg, NY)
Great 1st stage motors.

I’ve become a big fan of B6-0 booster engines in my multistage rockets. They have a good kick and don’t burn so long that the rocket begins to weather-**** (something I experienced with C6-0 engines, which have a longer burn time).

C
Customer (Barnegat, NJ)
G
Gary Little (Los Angeles, CA)
Excellent booster motors

My vintage Astron FarsideX lifting off on B6 booster motors.
