Estes B6-2 Rocket Engines
Estes B6 Model Rocket Engine Thrust Curve Chart

B6-2 Engines

SKU: 001605
MSRP/MAP: $11.99
$11.99
Sale

ENGINES FOR MODEL ROCKETS

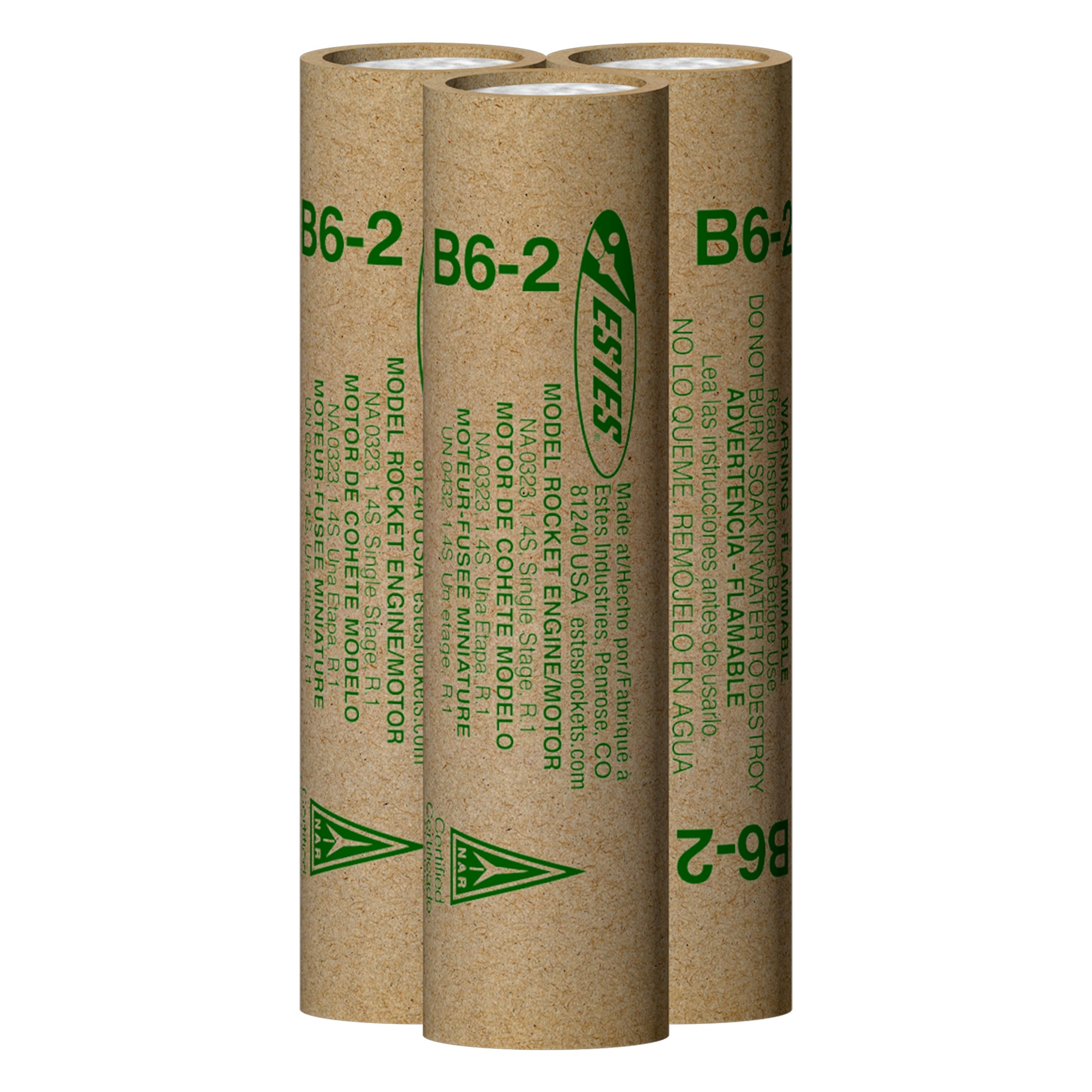

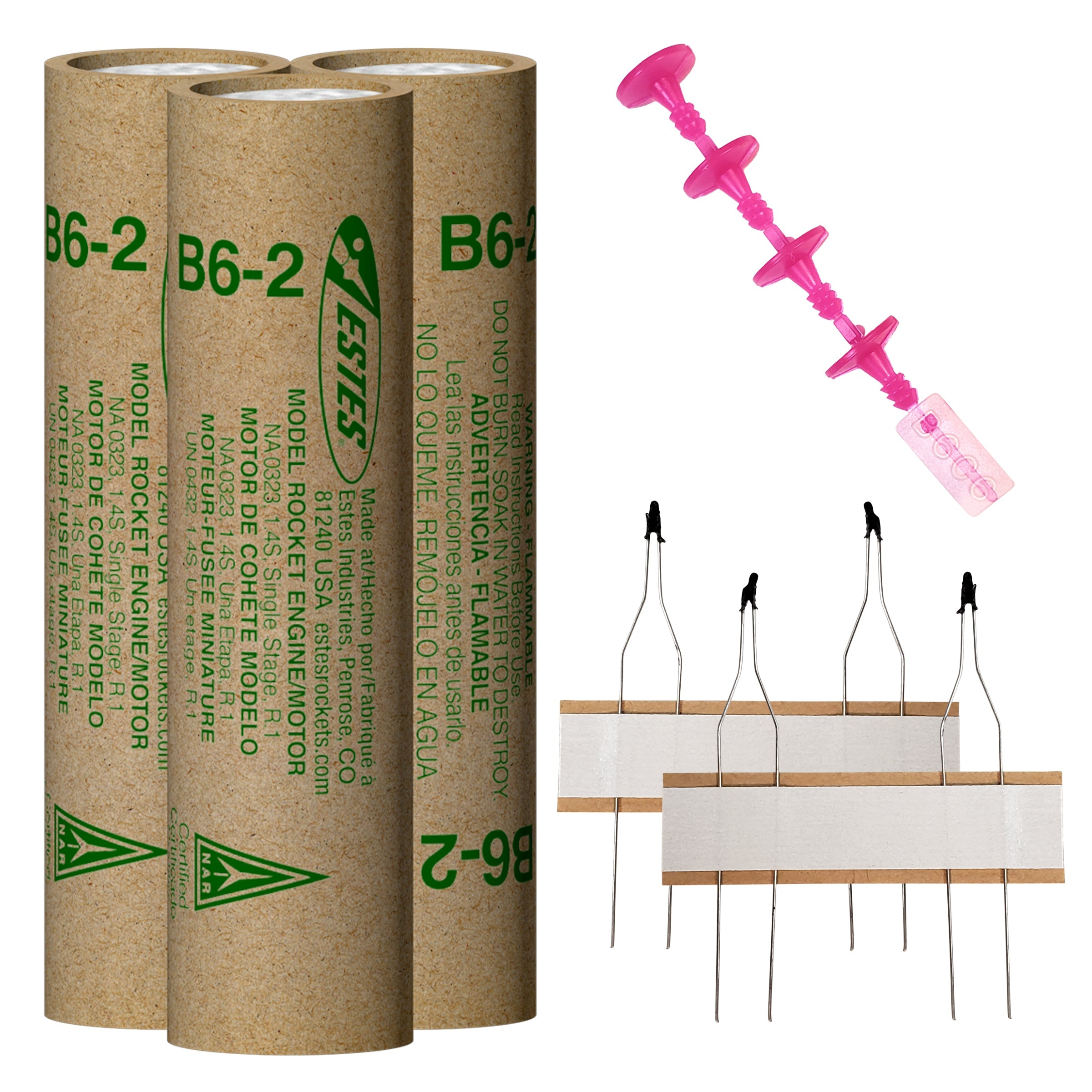

3 – B6-2 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes B6-2 engine is single stage engine designed for model rocket flight. This engine is a standard engine designed for flights in rockets weighing less than 4.5 ounces, including the engine. Each package includes 3 engines, 4 starters and 4 plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes B6-2 Rocket Engines

Technical Specifications

Technical Specifications

  • Total Impulse

5.00 N-sec
  • Time Delay

2 Seconds
  • Max Lift Weight

4.5 oz (127 g)
  • Max Thrust

12.10 Newtons (2.7 lbs)
  • Thrust Duration

0.80 Seconds
  • Length

2.8 in. (7 cm)
  • Diameter

18 mm
  • Weight

.61 oz. (17.3 g)
  • Propellant Weight

0.23 oz (6.5 g)

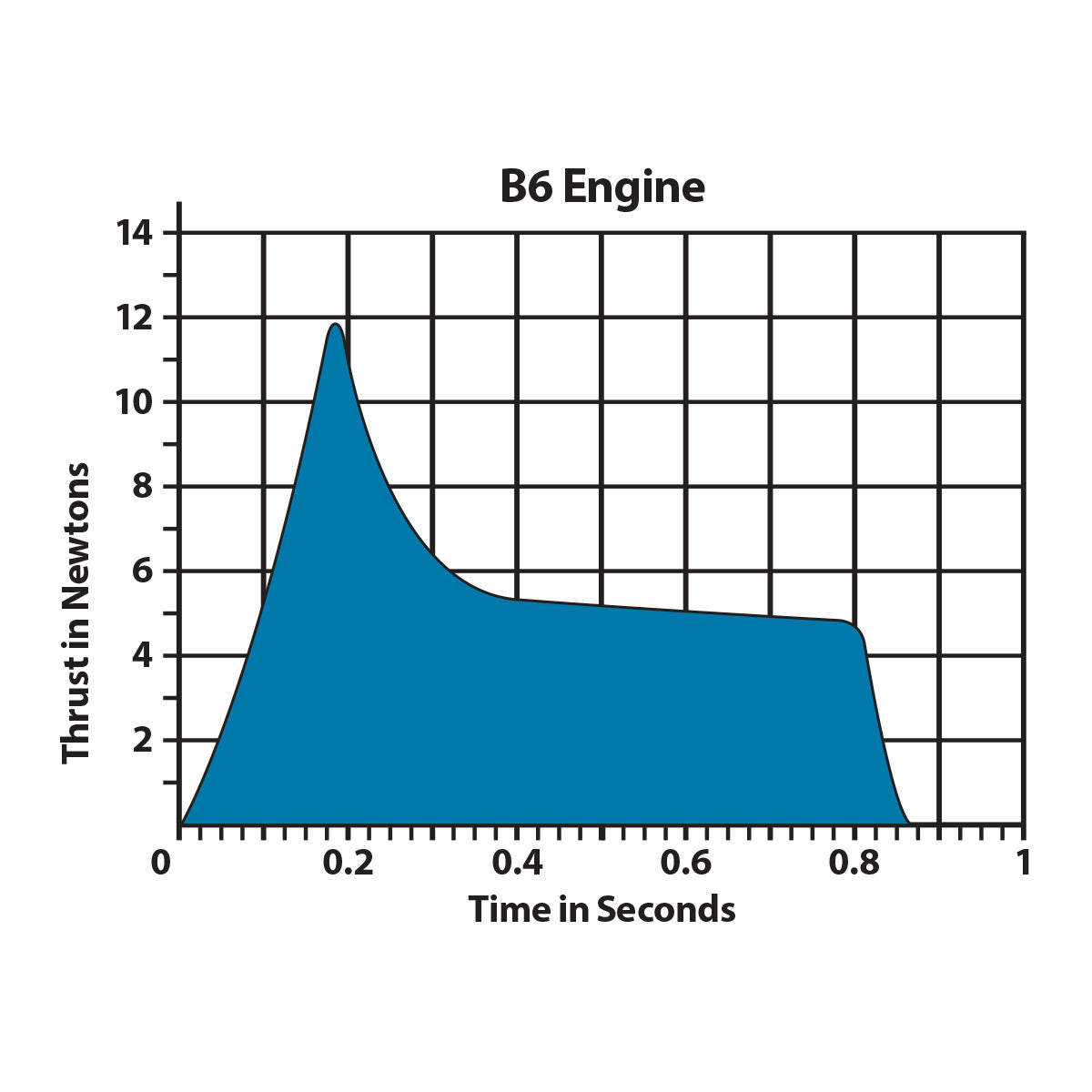

Estes B6 Model Rocket Engine Thrust Curve
