1/2A6-2 Engines
1/2 A6 Model Rocket Engine Thrust Curve Chart

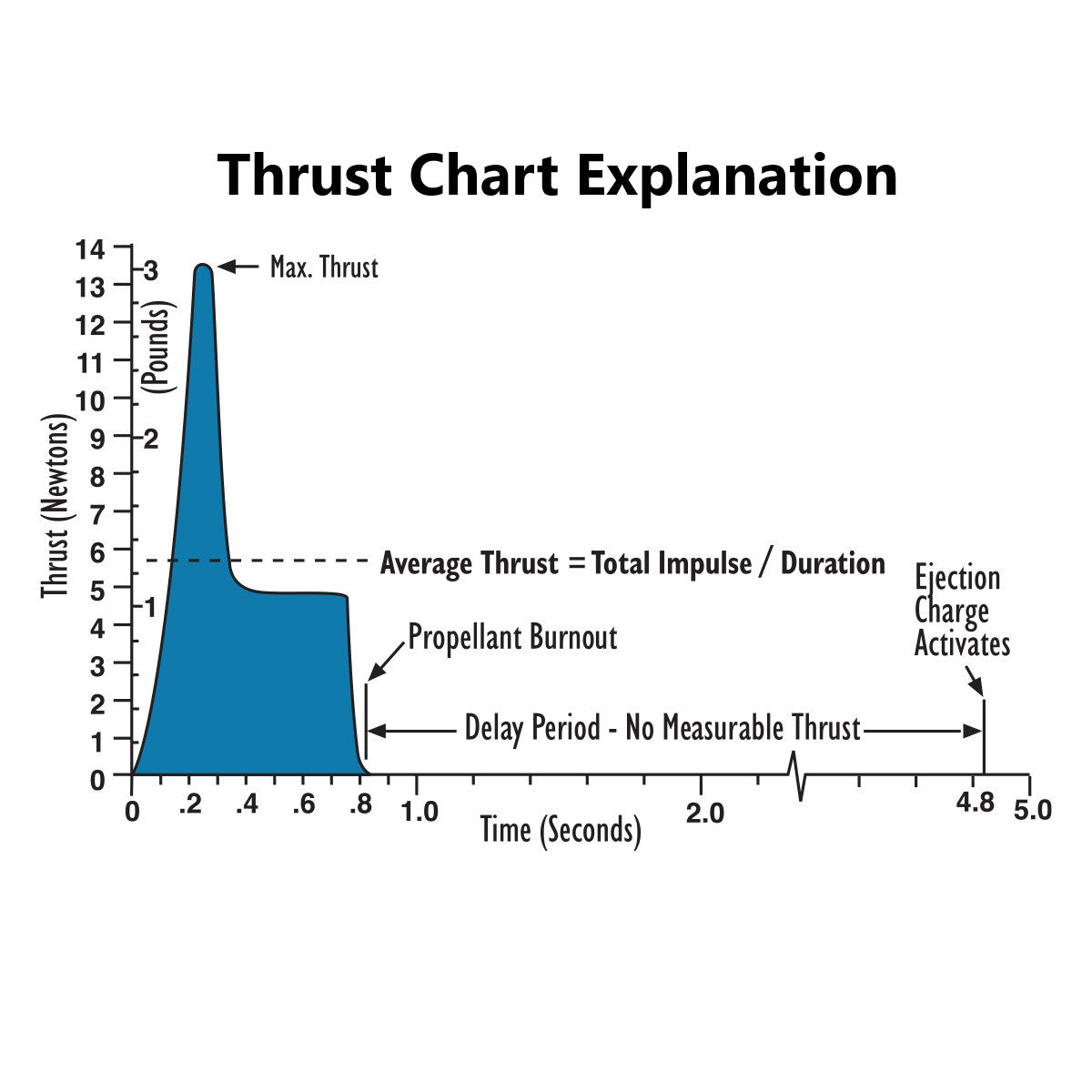

Model Rocket Thrust Curve Chart Explanation

1/2A6-2 Engines

SKU: 001593
UPC: 047776015937
MSRP/MAP: $11.29
$11.29
Sale Sold out

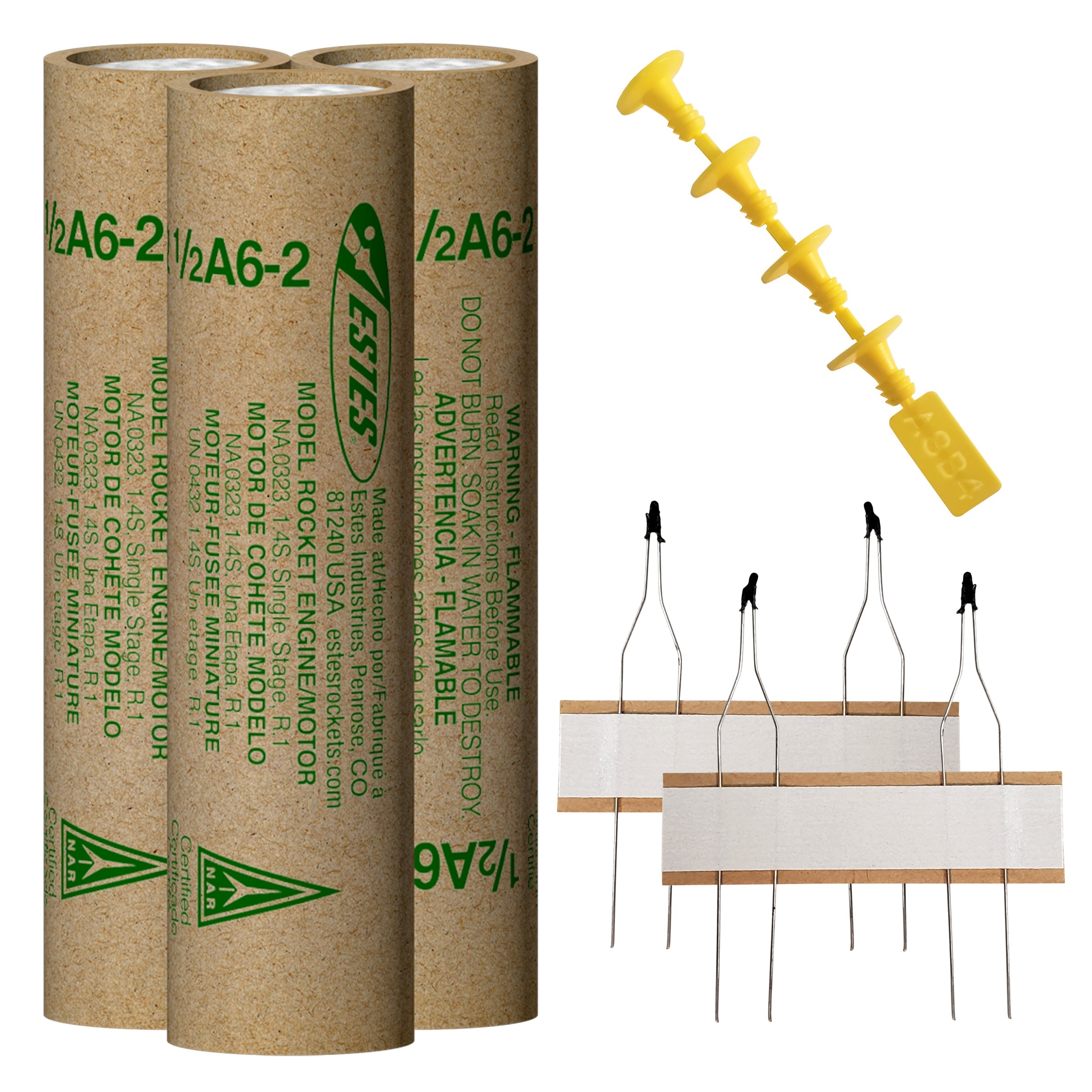

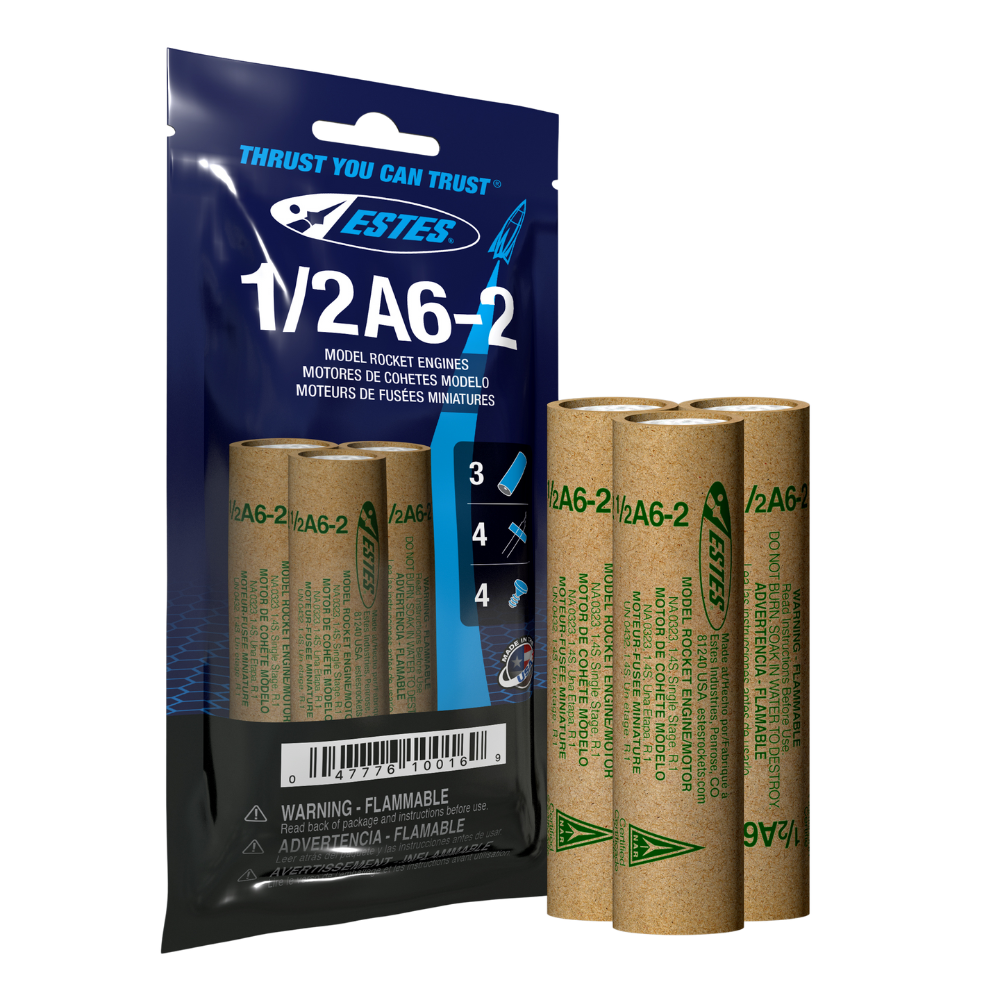

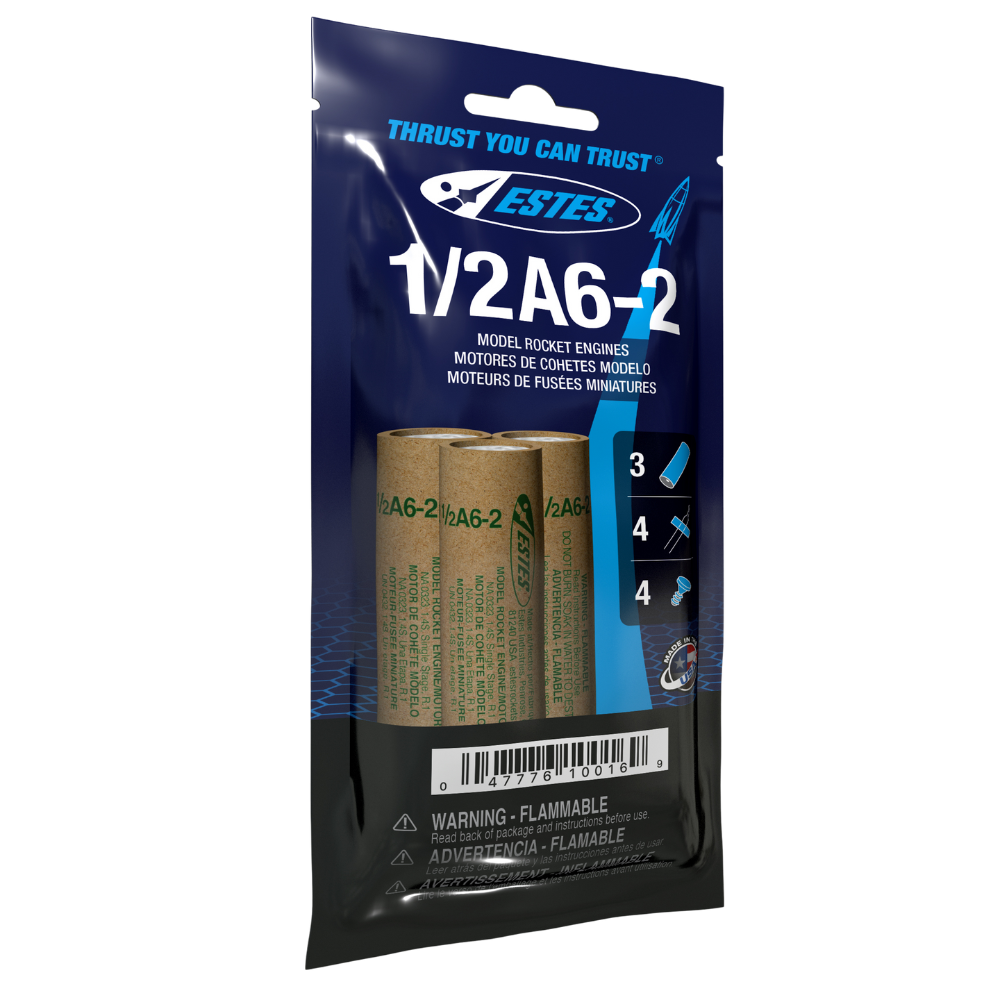

ENGINES FOR MODEL ROCKETS

3 – 1/2A6-2 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes 1/2A6-2 engine is single stage engine designed for model rocket flight. This engine is a standard engine designed for flights in rockets weighing less than 2 ounces, including the engine. Each package includes 3 engines, 4 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

1/2A6-2 Engines

Technical Specifications

Technical Specifications

  • Total Impulse

1.25 N-sec
  • Time Delay

2 Seconds
  • Max Lift Weight

2.0 oz (57 g)
  • Max Thrust

8.90 Newtons (2.0 lbs)
  • Thrust Duration

0.30 Seconds
  • Length

2.75 in. (7 cm)
  • Diameter

18 mm
  • Weight

.48 oz. (13.6 g)
  • Propellant Weight

0.10 oz (2.7 g)

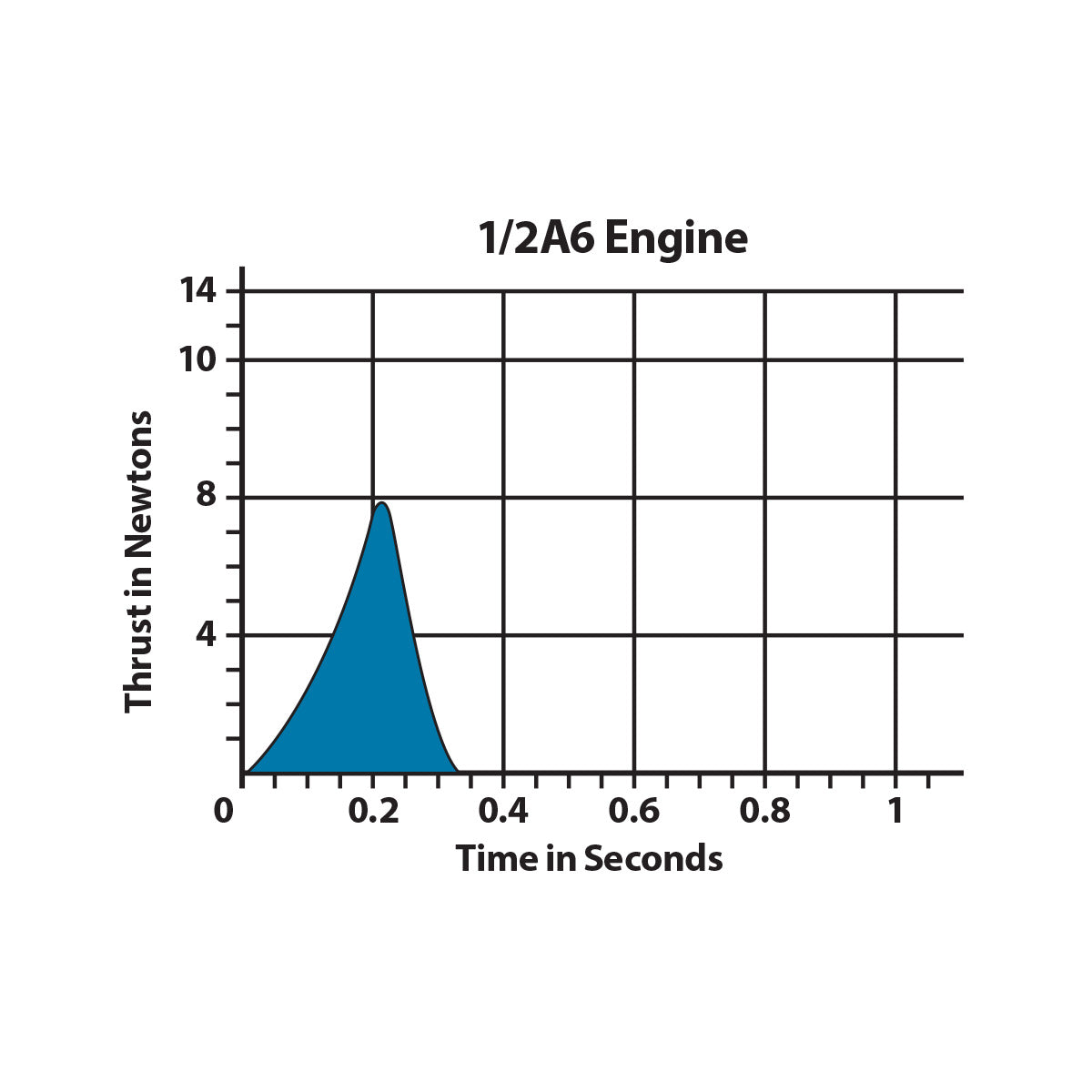

1/2 A6 Model Rocket Engine Thrust Curve Chart
