Estes Rockets

A10-3T Engines

SKU: 001511
MSRP/MAP: $11.29
$11.29
Sale

ENGINES FOR MODEL ROCKETS

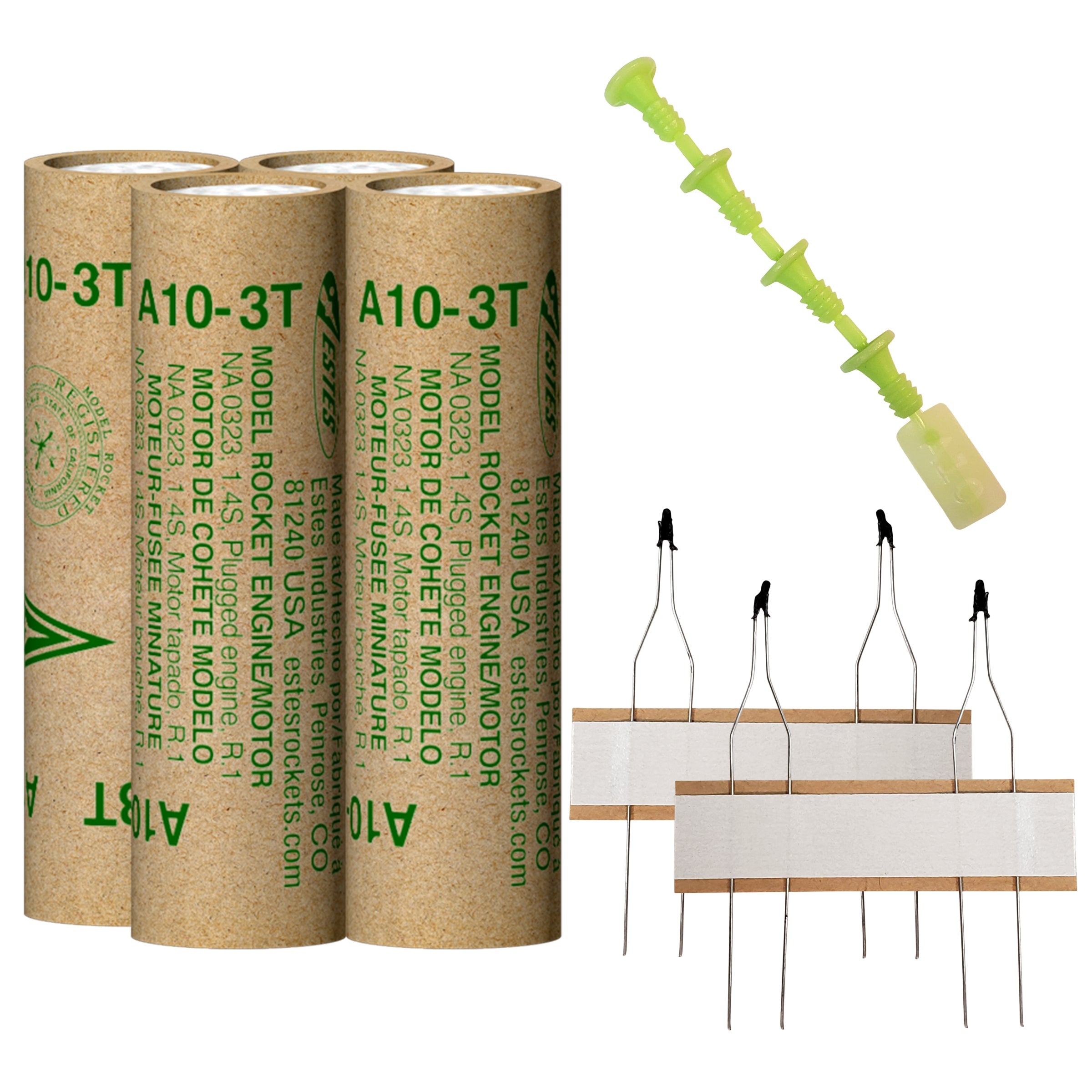

4 – A10-3T Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes A10-3T engine is single stage engine designed for model rocket flight. This engine is a mini engine designed for flights in lightweight rockets. Each package includes 4 engines, 4 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes A10-3T Model Rocket Engines

Compatible Rockets

Firehawk™
$20.99
Mini Honest John
$13.99
Star Hopper™
$14.99
Space Corps™ Lunar Scout™
$11.99

Technical Specifications

Technical Specifications

  • Total Impulse

2.50 N-sec

  • Time Delay

3 Seconds

  • Max Lift Weight

3.0 oz (85 g)

  • Max Thrust

13.00 Newtons (2.9 lbs)

  • Thrust Duration

0.80 Seconds

  • Length

1.8 in. (4.6 cm)

  • Diameter

13 mm

  • Weight

.29 oz. (8.2 g)

  • Propellant Weight

0.12 oz (3.5 g)

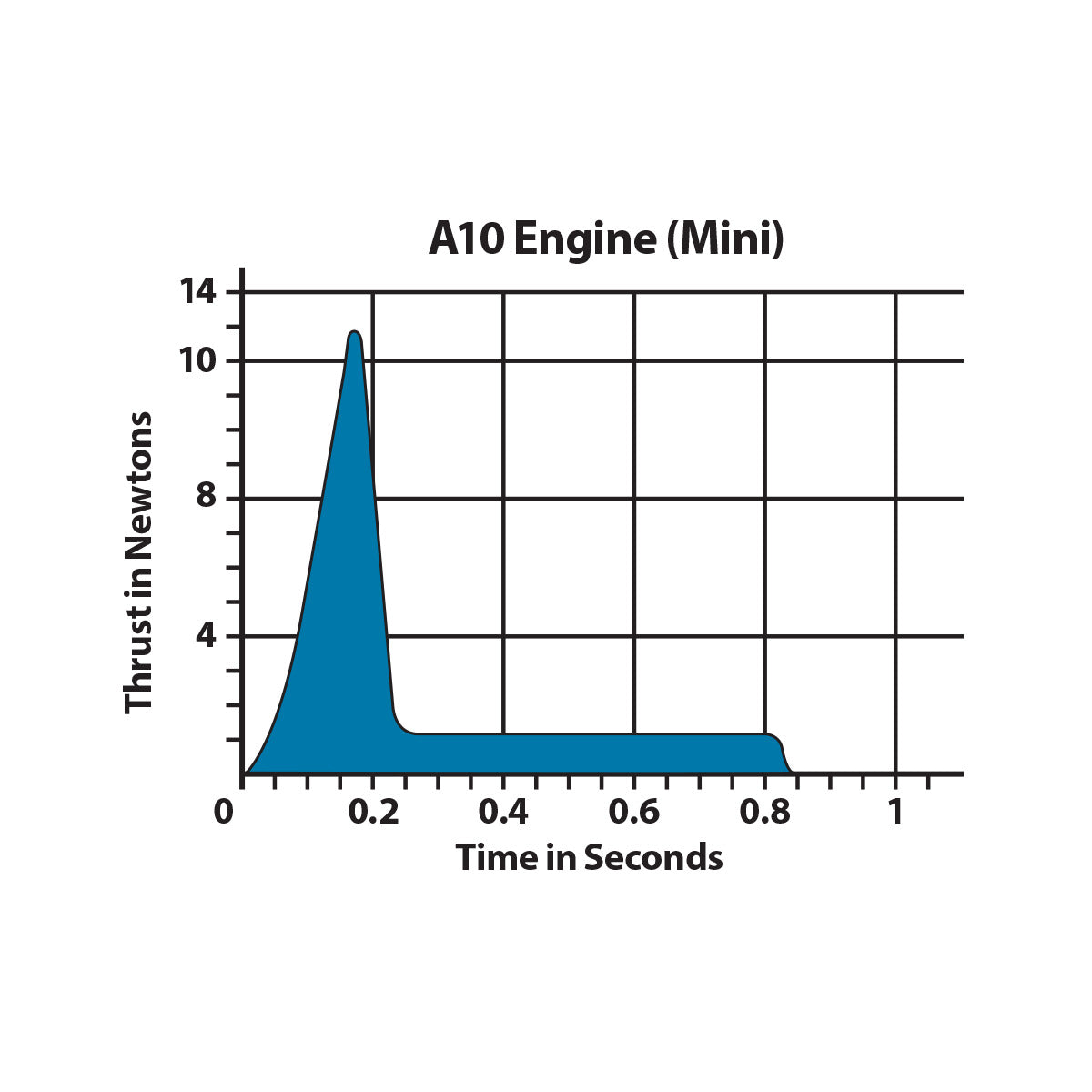

A10 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jeffrey Gowin (Arvada, CO)
Little Rockets

Still Good. Been a part of Estes Rockets since I was a kid. Great stuff.

User picture
R
Rocket Guru
ESTES 13mm 'Mini' A10-3 model rocket motor is awesome and

ESTES 13mm 'Mini' A10-3 model rocket motor is awesome and can be substituted for any model rocket requiring an 18mm ESTES A8-3 just use their 13mm/18mm rocket motor adapter PN 2316.
