Estes A3-4T Model Rocket Engines
A3 Model Rocket Engine Thrust Curve Chart

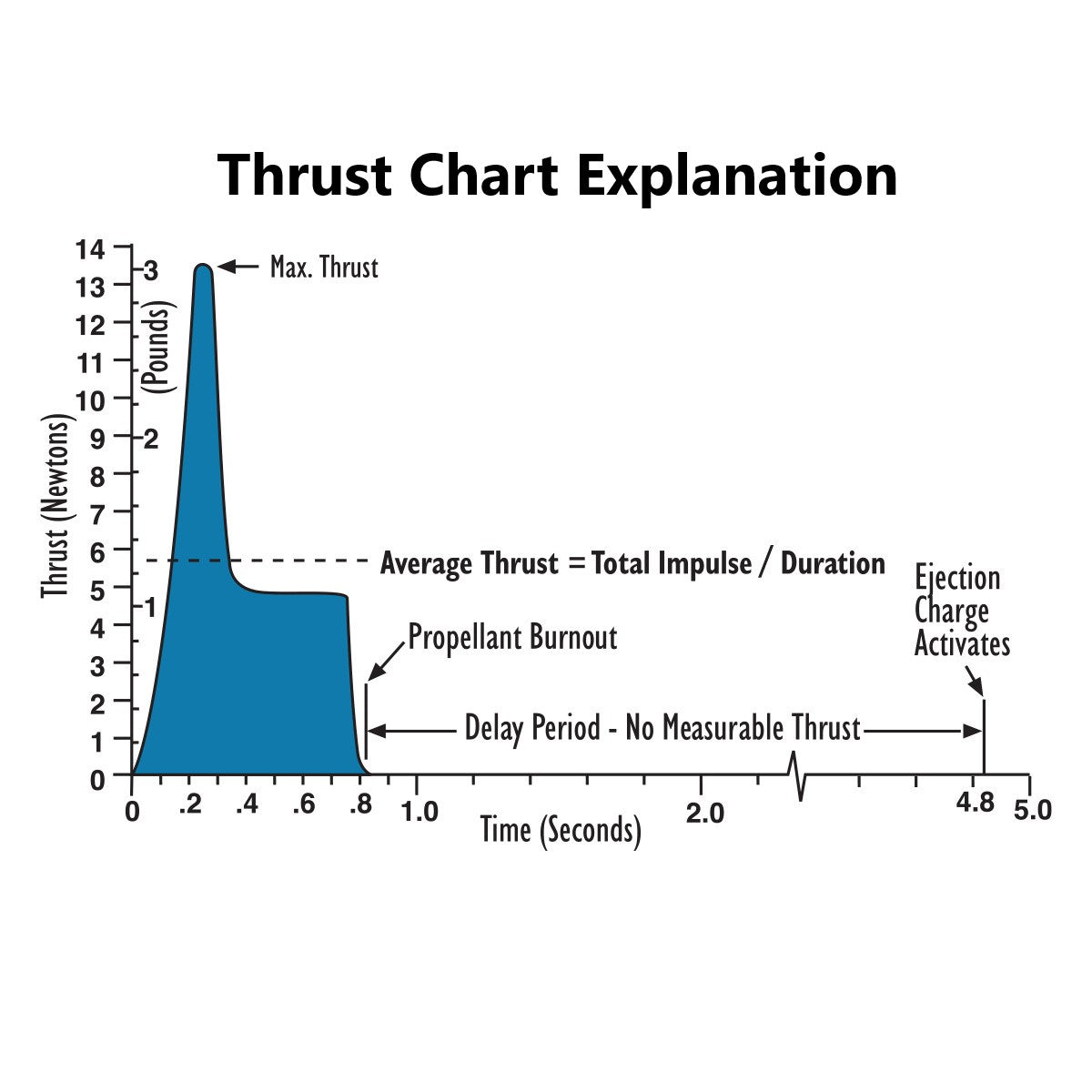

Model Rocket Thrust Curve Chart Explanation

A3-4T Engines

SKU: 001507
UPC: 047776015074
MSRP/MAP: $11.29
$11.29
Sale Sold out

ENGINES FOR MODEL ROCKETS

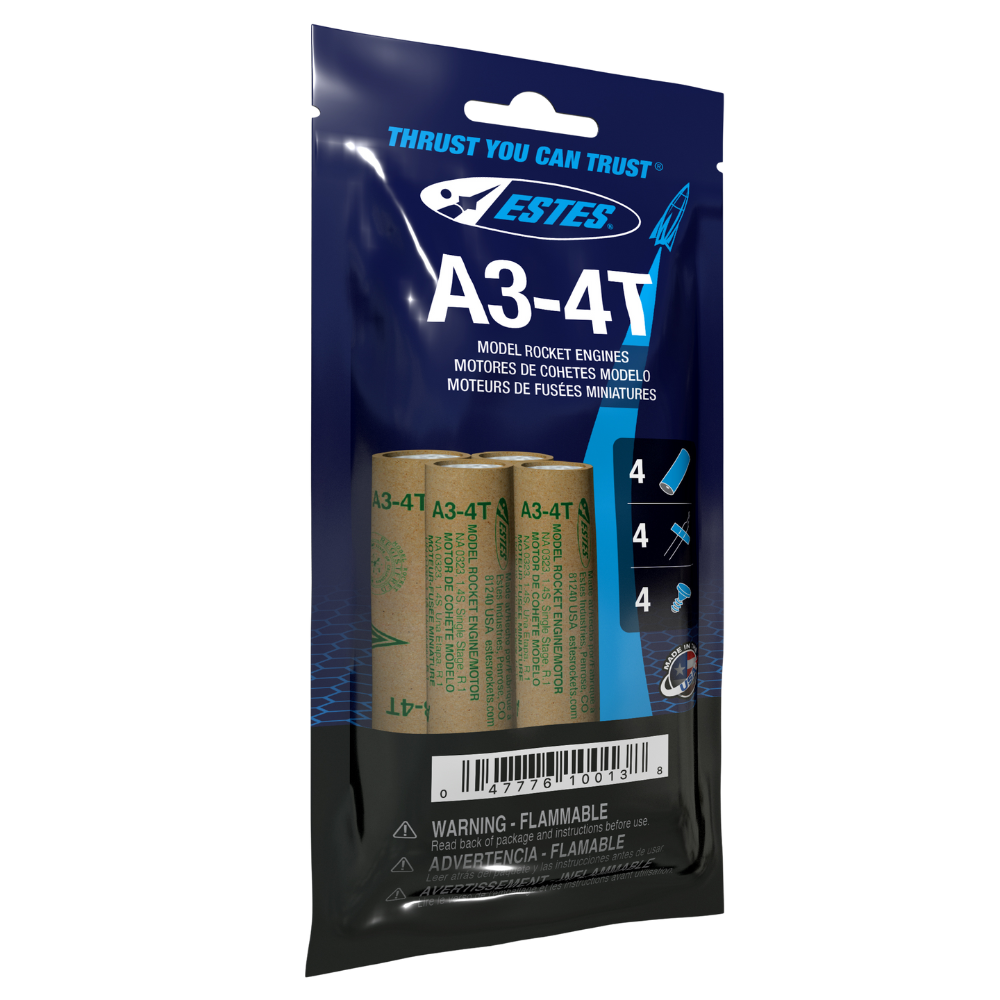

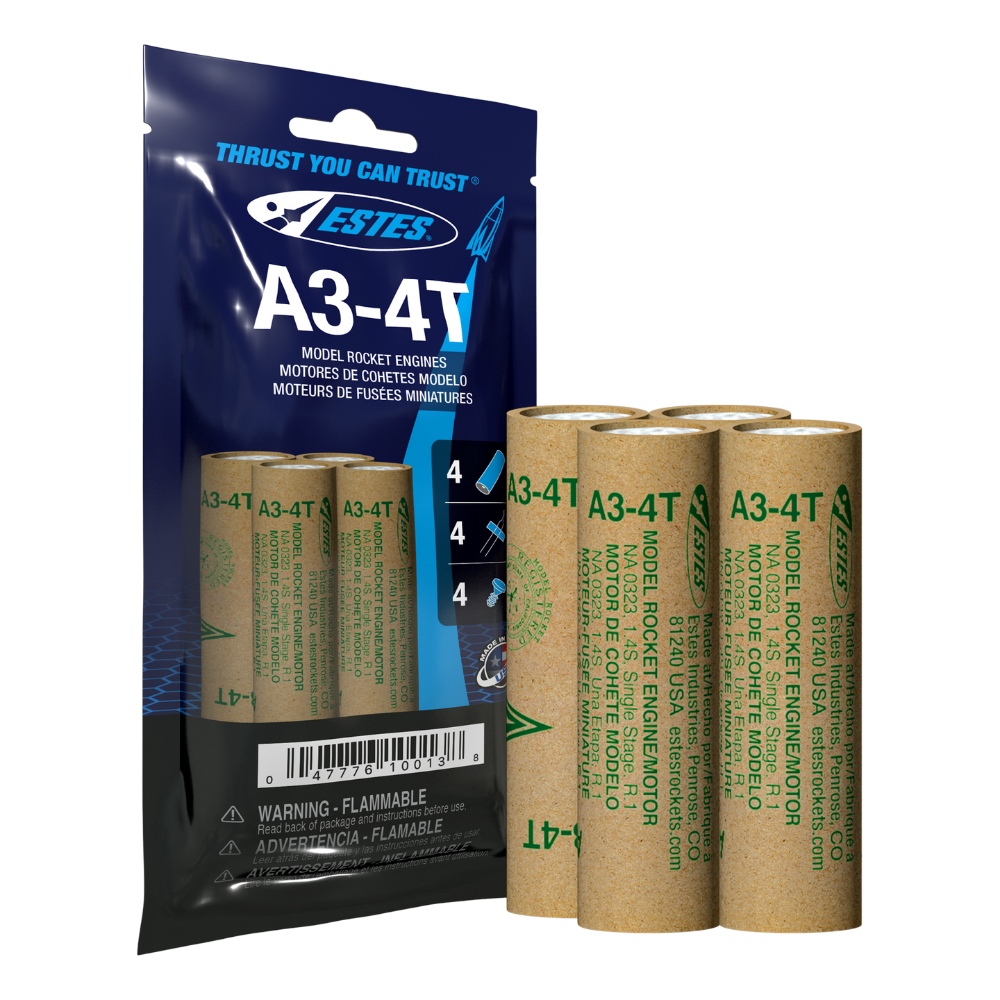

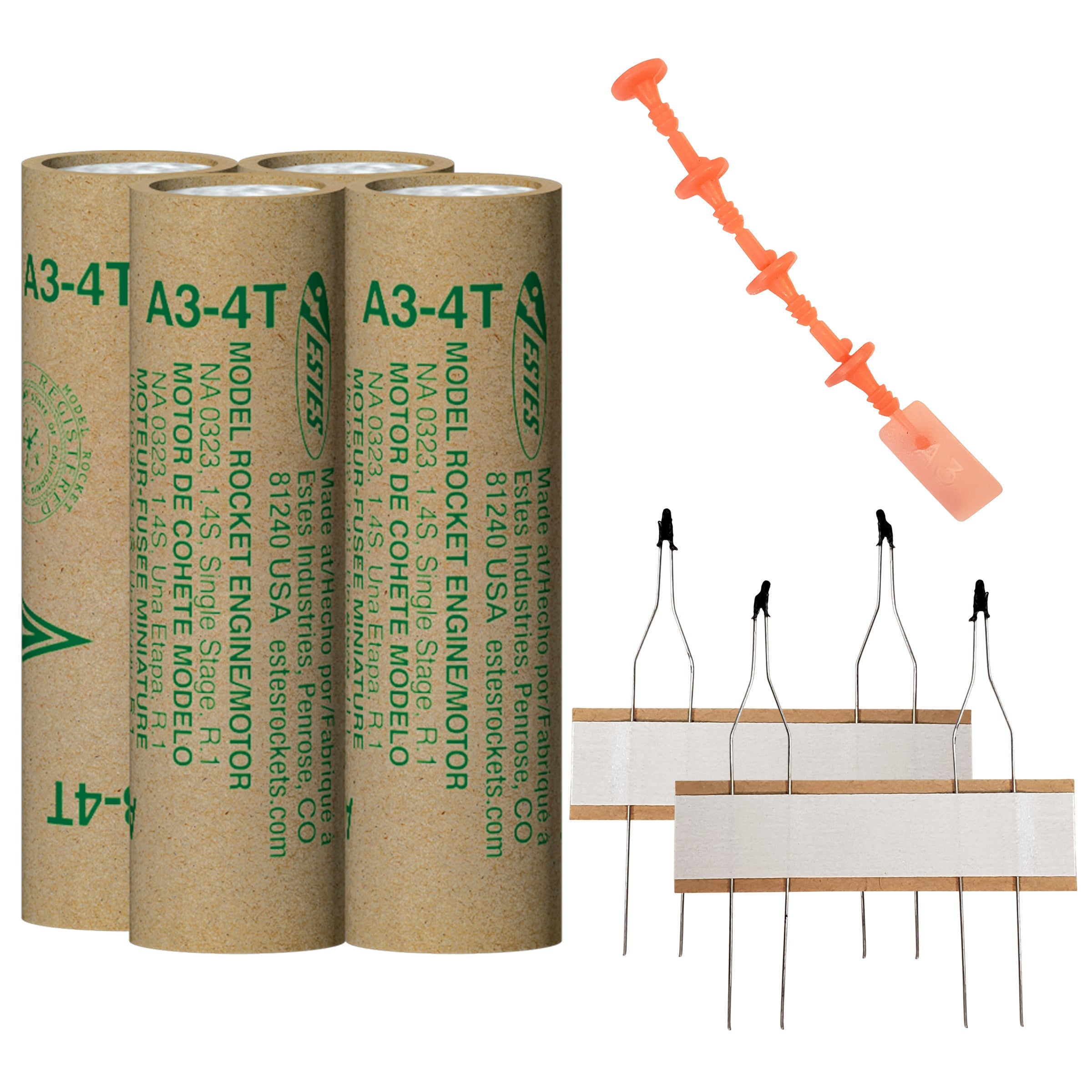

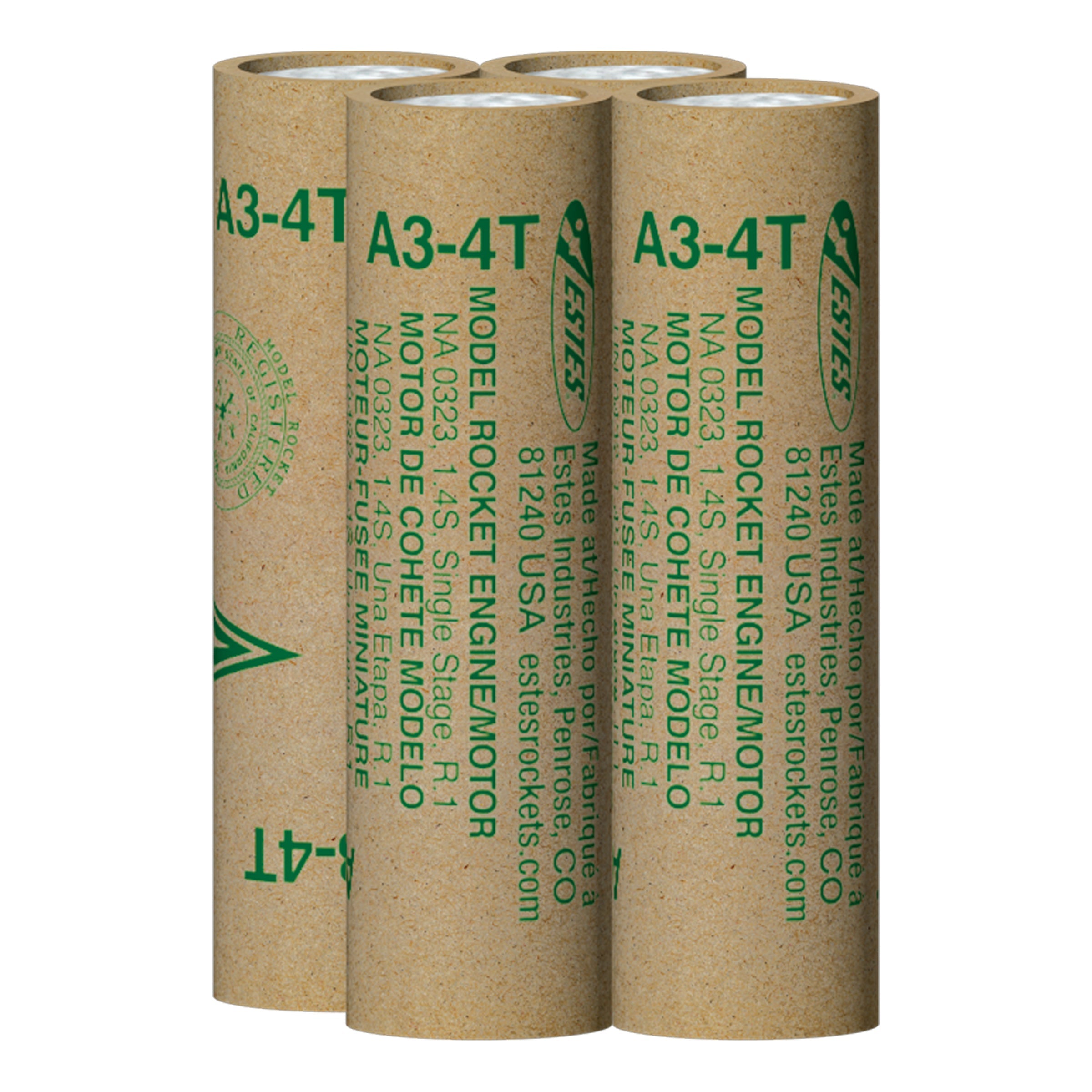

4 – A3-4T Engines

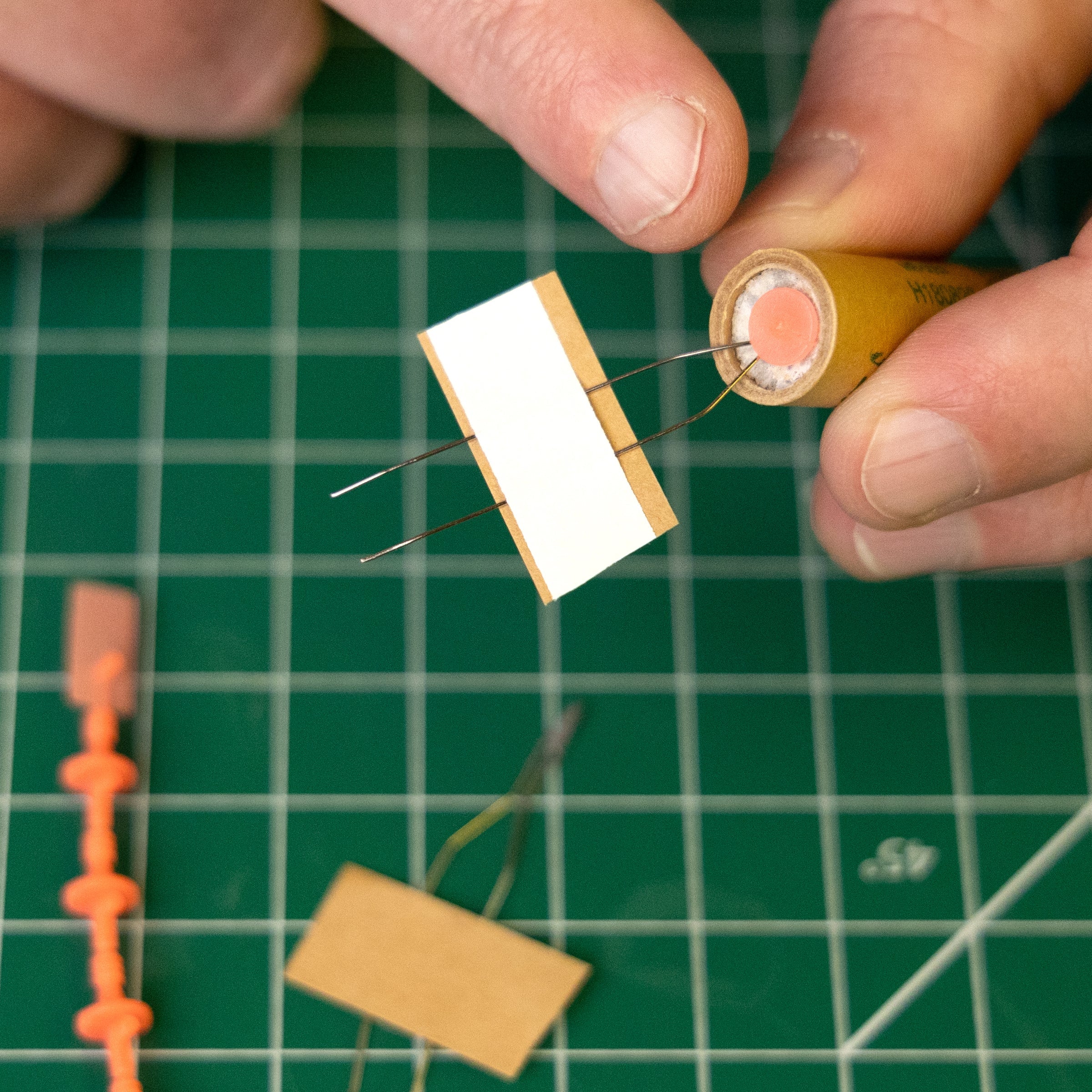

4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes A3-4T engine is single stage engine designed for model rocket flight. This engine is a mini engine designed for flights in lightweight rockets. Each package includes 4 engines, 4 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Estes A3-4T Model Rocket Engines

Technical Specifications

Technical Specifications

  • Total Impulse

2.50 N-sec
  • Time Delay

4 Seconds
  • Max Lift Weight

2.0 oz (57 g)
  • Max Thrust

6.80 Newtons (1.5 lbs)
  • Thrust Duration

0.60 Seconds
  • Length

1.8 in. (4.6 cm)
  • Diameter

13 mm
  • Weight

.28 oz. (7.9 g)
  • Propellant Weight

0.12 oz (3.3 g)

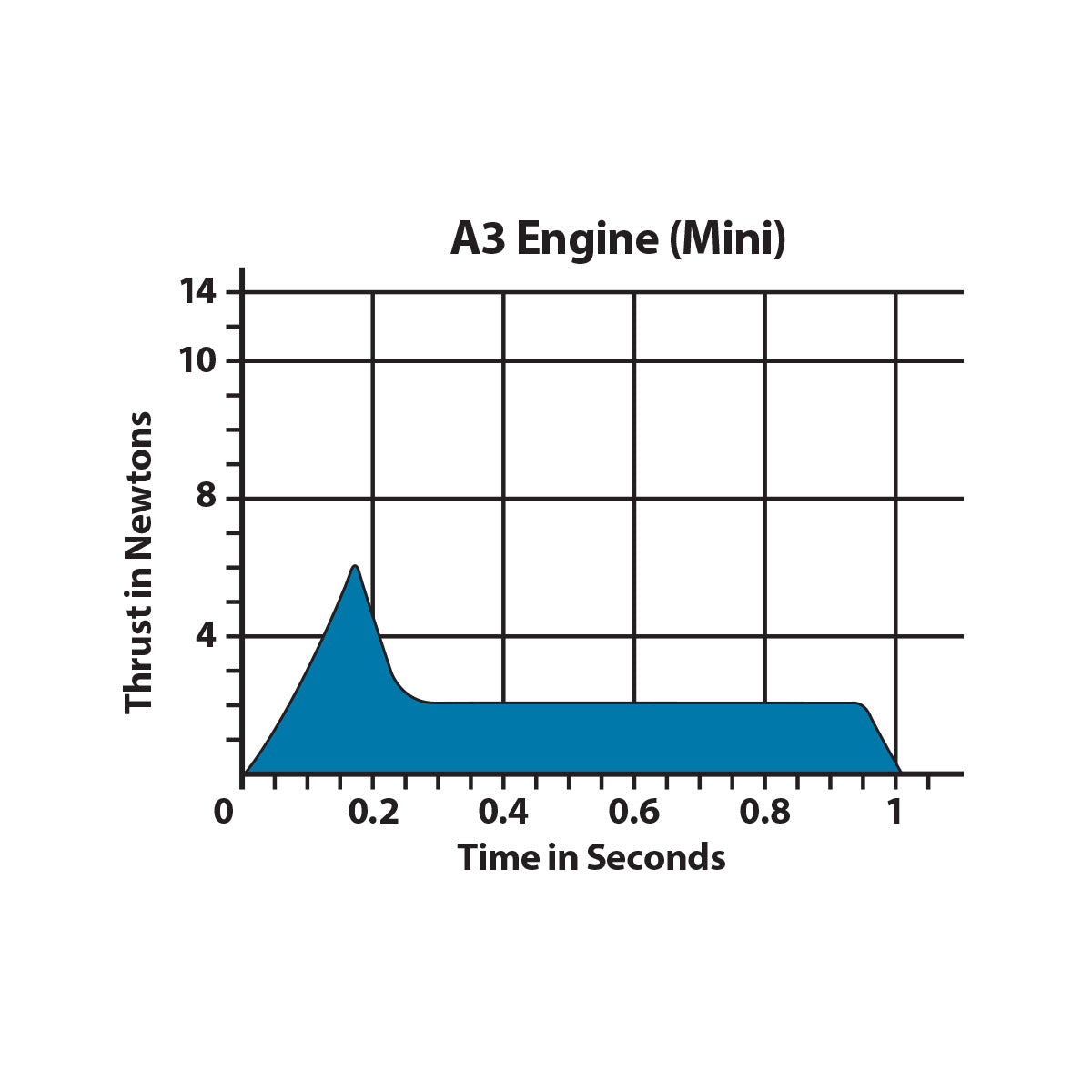

A3 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
0%
(0)
0%
(0)
25%
(1)
C
Customer (Redford, MI)
0 for 12

Igniters did fire up hot enough to ignite engines. I checked voltage of controller and it was 9v. I thought the range to fire was 6-12v.
I used an ESTES controller brand new everything.

Hi there, we're sorry to hear that your experience with our A3-4T Engines was not up to par. We take all feedback seriously and would appreciate the chance to address your concerns. Please email us at service@estesrockets.com so we can assist you directly. We want to make sure that you have a successful launch and enjoy our products. Thank you for bringing this to our attention.

T
Todd Hattaway (East Dublin, GA)
Works great at great price

Great price for great engines

A
Anonymous (Pittsboro, NC)
Excellent Products

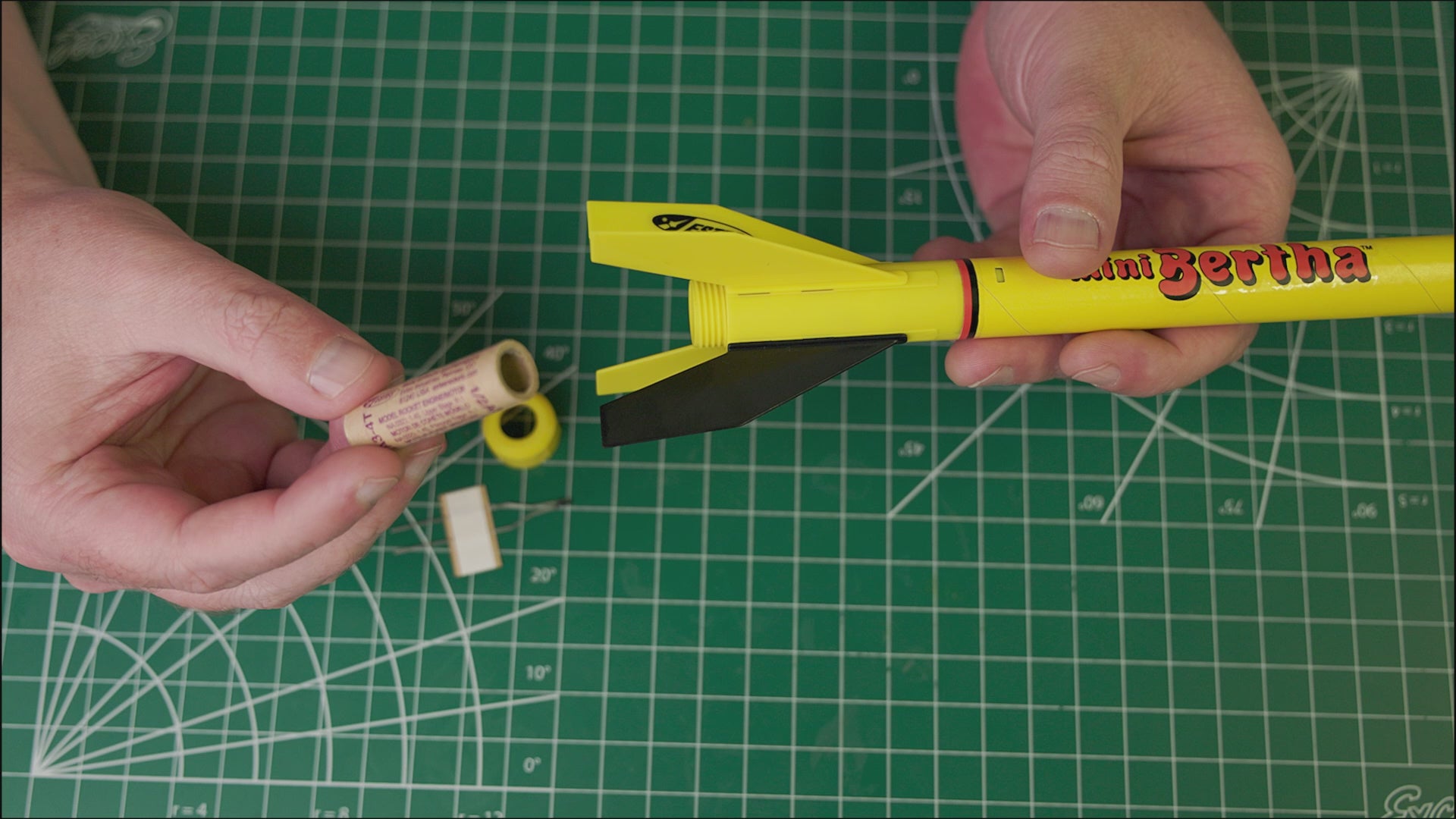

The new Mini Alpha and Bertha rockets truly reach altitudes as advertised even with an A3 motor (I have not tried the A10 yet but presume that would be even higher). So both these rockets weigh just three grams less than the Star Hopper but yet reach almost twice as high (650 feet to 750 feet compared with 400 feet). Not sure how this happens but it is true and I'm guessing it is the fin structure design, quite spectacular and different than the Star Hopper. My only question is the web site says Bertha can reach 650 feet and the box says 750 feet, a bit of a difference - which is it? The Alpha web site says 695 feet max and so does the box so that is in sync. Great flights on this end and impressive to my small audiences - out of sight and then they come down to be retrieved. I loved the Star Hopper but now prefer the Bertha for mini launches. The A3 is plenty powerful enough but will be interested to see what the A10 does with these. The yellow Bertha is easier to find than the white and red Alpha, simply a color preference for retrieval. The Alpha nose cone seems to be a little too tight fit compared with the Bertha, so I now prefer the Bertha for perfect launches, but both are impressive mini rockets.
