Estes E12-8 Model Rocket Engines
E12-8 Rocket Engine
E12 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Chart Explanation

E12-8 Engines

SKU: 001694
MSRP/MAP: $26.49
$26.49
Sale

ENGINES FOR MODEL ROCKETS

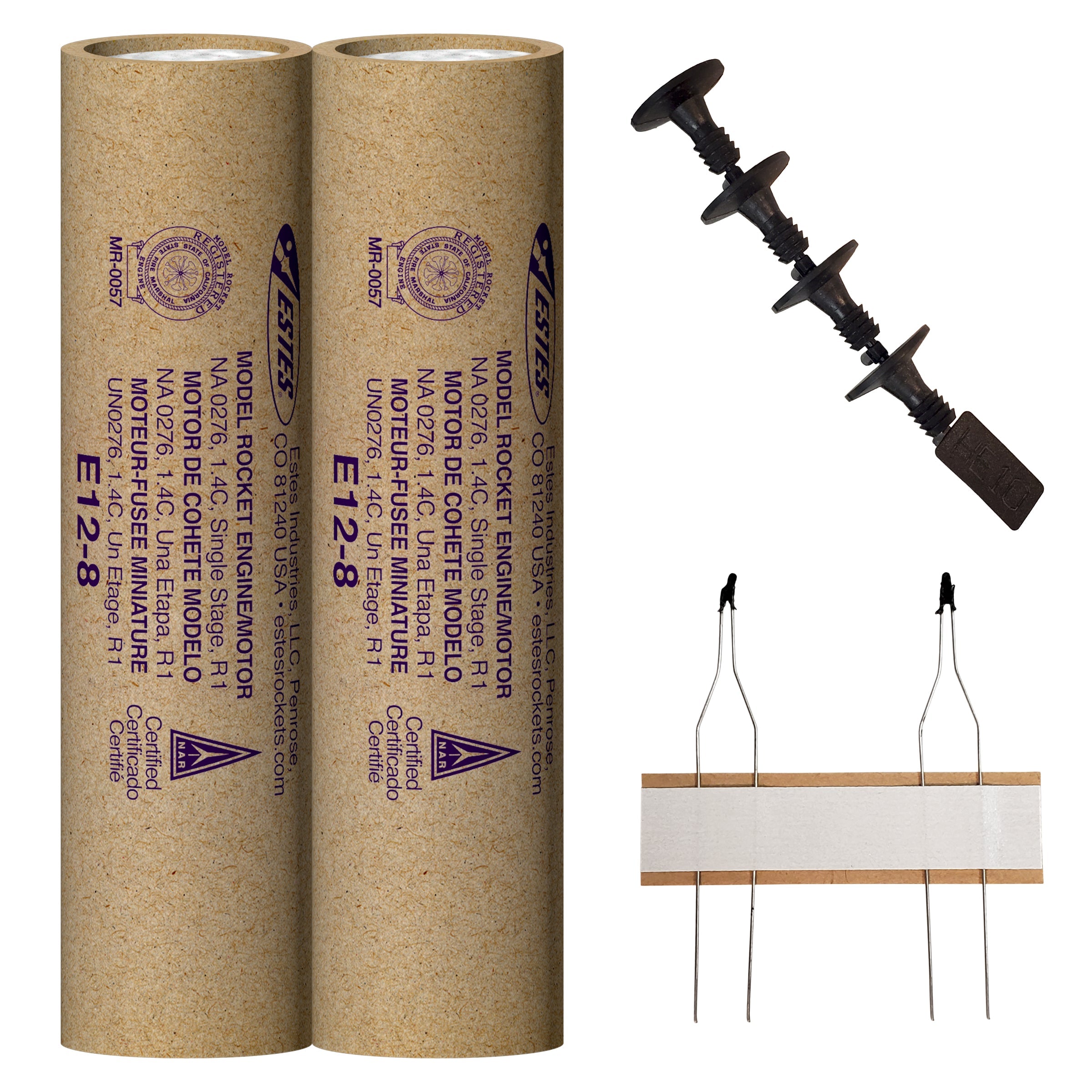

3 – E12-8 Engines
4 – Starters
4 – Starter Plugs

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

Overview

The Estes E12-8 engine is a 24mm diameter upper stage engine designed for model rocket flight. This engine can also be used as a single stage engine. Maximum lift weight is 12 ounces. Each package includes 3 engines, 4 starters and 4 starter plugs.

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

E12-8 Rocket Engine

Technical Specifications

Technical Specifications

  • Total Impulse

29.80 N-sec
  • Time Delay

8 Seconds
  • Max Lift Weight

12.0 oz (340 g)
  • Max Thrust

31.80 Newtons (7.1 lbs)
  • Thrust Duration

2.70 Seconds
  • Length

3.8 in. (9.7 cm)
  • Diameter

24 mm
  • Weight

2.24 oz. (63.5 g)
  • Propellant Weight

1.3 oz (36.9 g)

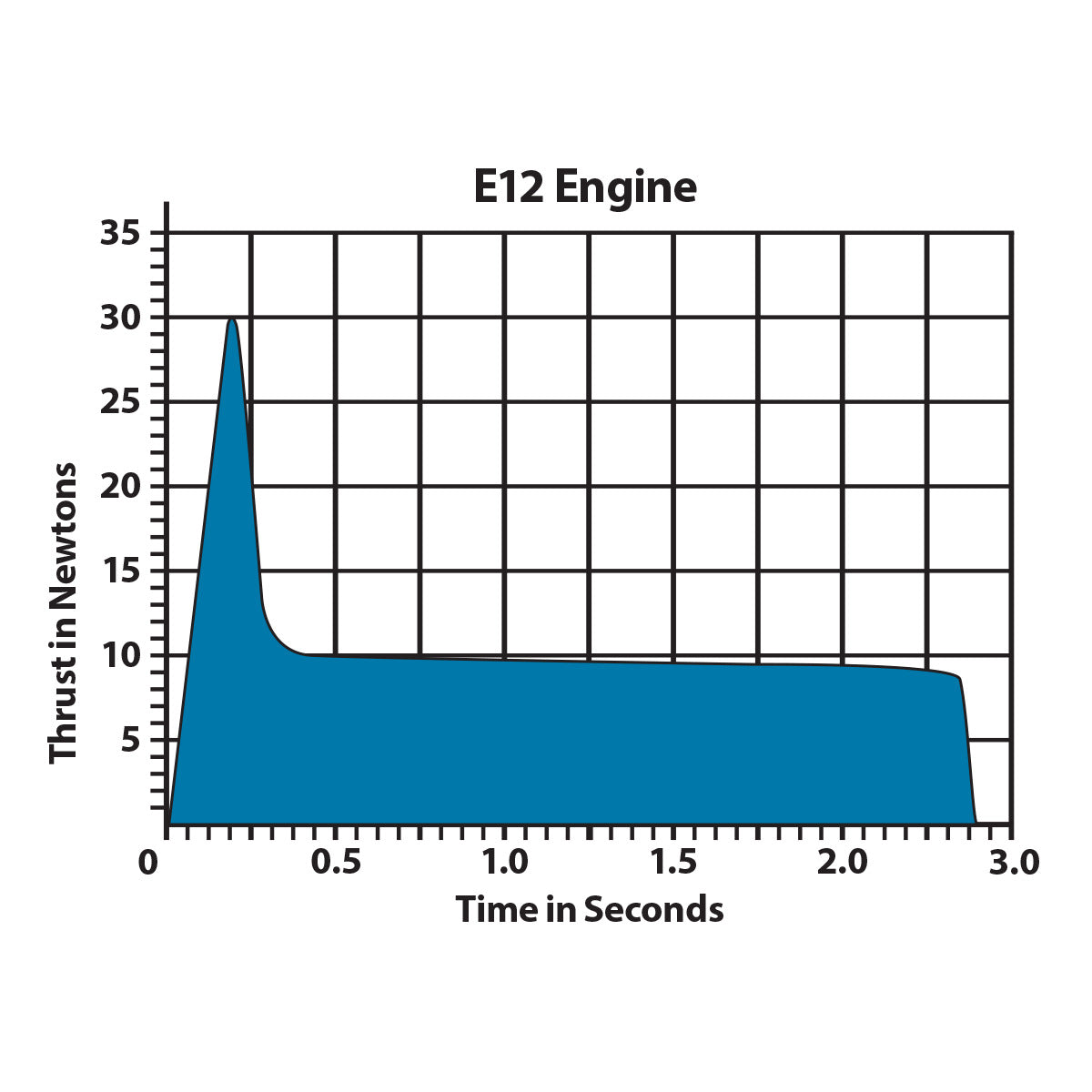

E12 Model Rocket Engine Thrust Curve Chart
