Estes C11-5 Model Rocket Engines
C11 Model Rocket Engine Thrust Curve Chart

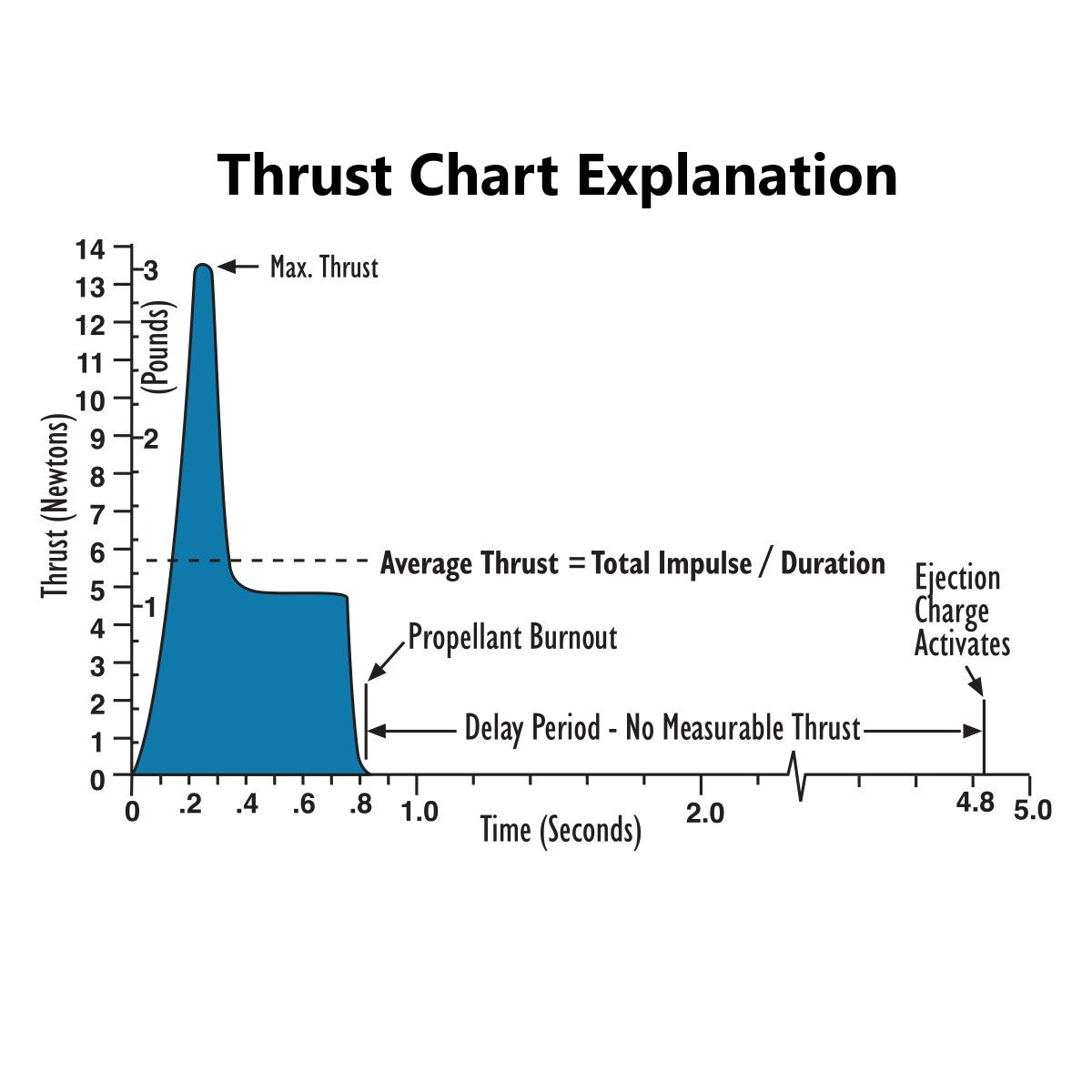

Model Rocket Thrust Curve Chart Explanation

C11-5 Engines

SKU: 001523
MSRP/MAP: $9.99
$9.99
Sale Sold out

ENGINES FOR MODEL ROCKETS

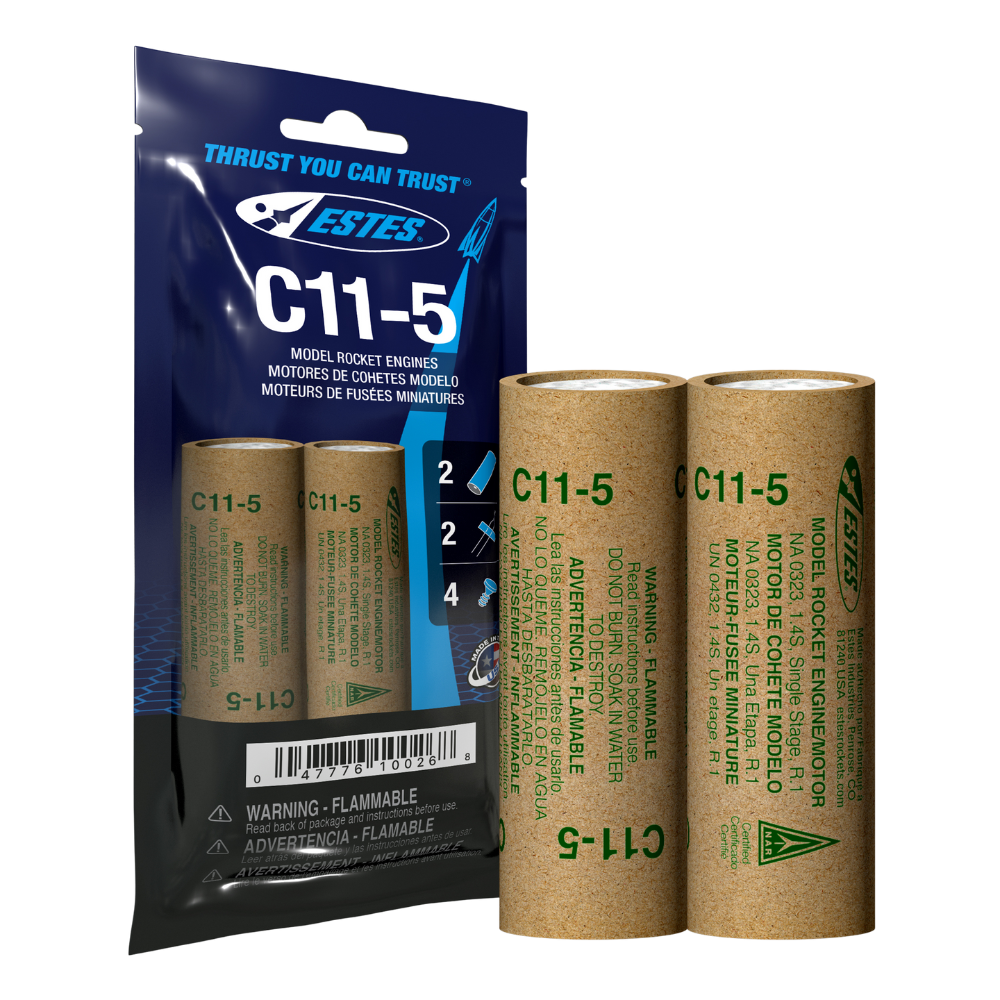

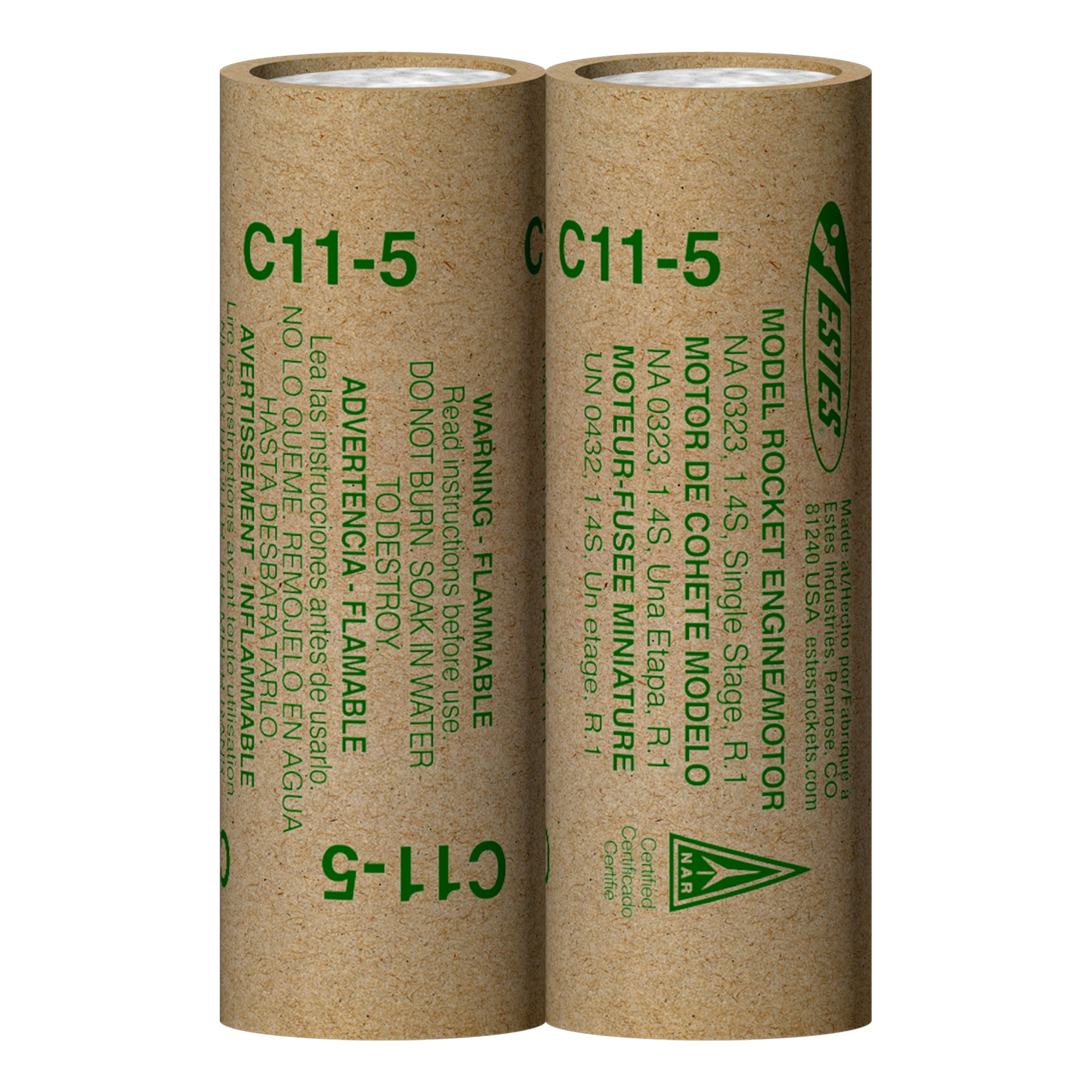

2 – C11-5 Engines
2 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes C11-5 engine is a single stage engine designed for model rocket flight. This engine is a 24mm diameter engine designed for rockets with a maximum lift weight of less than 5 ounces.

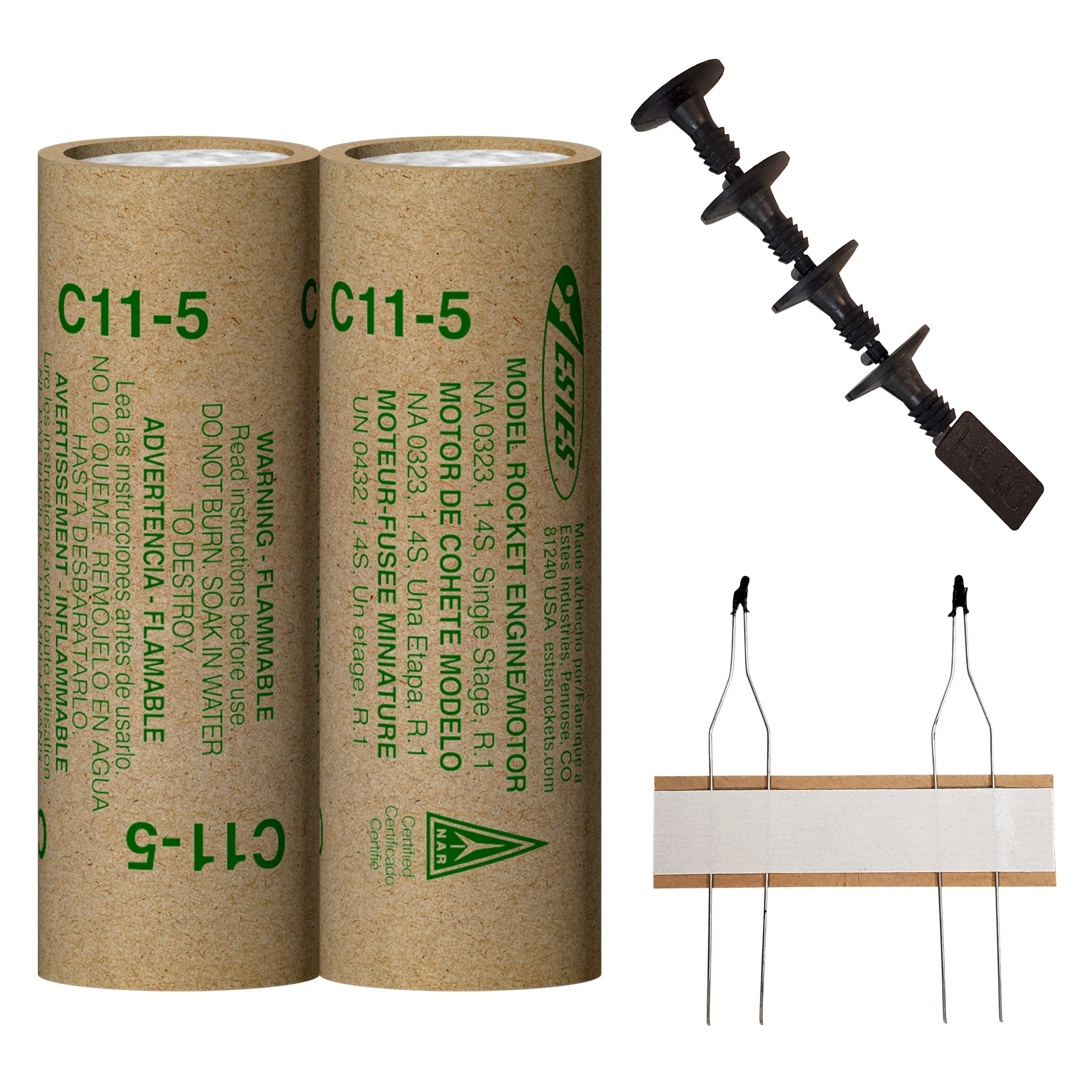

Each package includes 2 engines, 2 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Estes C11-5 Model Rocket Engines

Technical Specifications

Technical Specifications

  • Total Impulse

10.00 N-sec
  • Time Delay

5 Seconds
  • Max Lift Weight

5.0 oz (142 g)
  • Max Thrust

22.10 Newtons (4.9 lbs)
  • Thrust Duration

0.80 Seconds
  • Length

2.75 in. (7 cm)
  • Diameter

24 mm
  • Weight

1.18 oz. (33.5 g)
  • Propellant Weight

0.44 oz (12.4 g)

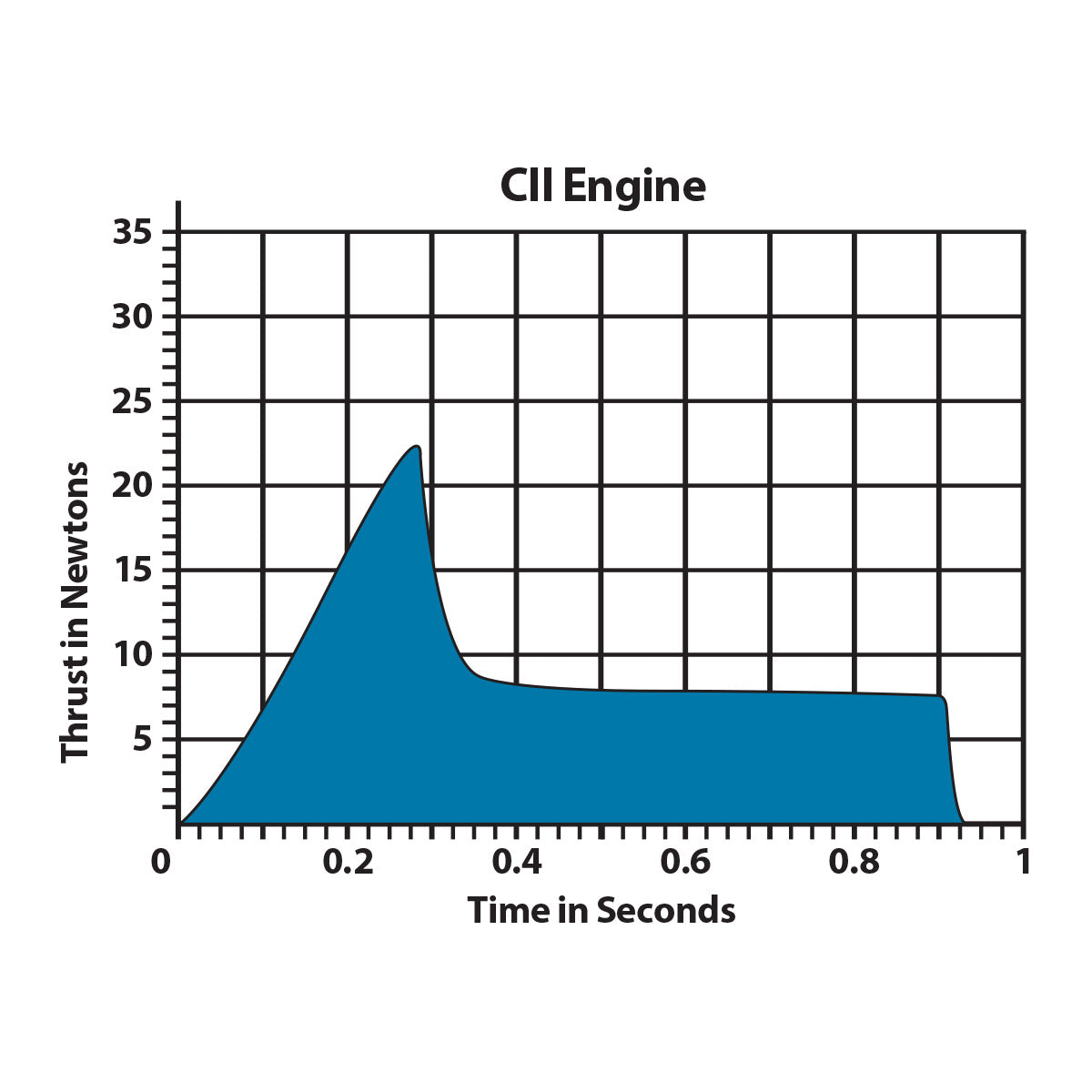

C11 Model Rocket Engine Thrust Curve Chart
